| Manufacturer Part Number: | DB64R |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

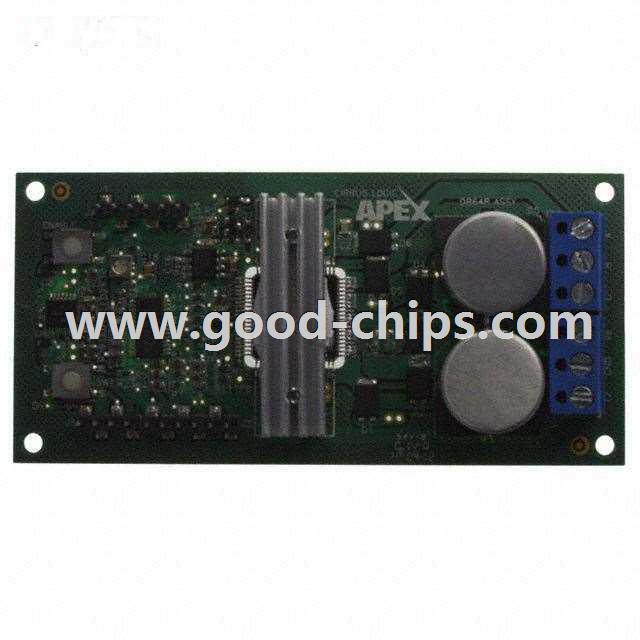

| Description: | SA306 Apex Precision Power® Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DB64R Datasheet |
| Internal Part Number | 898-DB64R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | No | |
| Utilized IC / Part | SA306 | |
| Primary Attributes | 3-Ph DC Motors | |
| Secondary Attributes | 12V Supply, 1kW Peak Power, 17A Peak Current, Board can Dissipate 7-9W | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DB64R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DB64R is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of DB64R is new and unused, you can buy DB64R Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DB64R.
