| Manufacturer Part Number: | DB62 |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

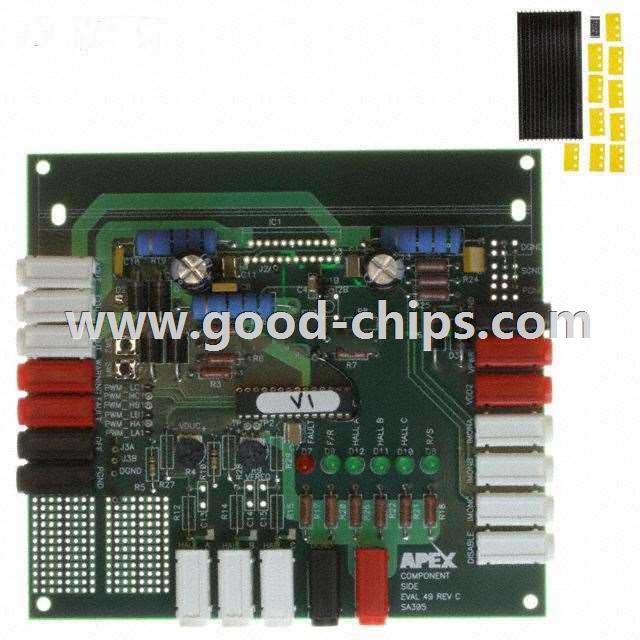

| Description: | SA305EX Apex Precision Power® Series Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DB62 Datasheet |
| Internal Part Number | 898-DB62 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | No | |
| Utilized IC / Part | SA305EX | |
| Primary Attributes | 3-Ph Brushless DC (BLDC) Motors | |
| Secondary Attributes | PWM Inputs | |
| Supplied Contents | Board, Components for Assembly | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DB62 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DB62 is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of DB62 is new and unused, you can buy DB62 Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DB62.
