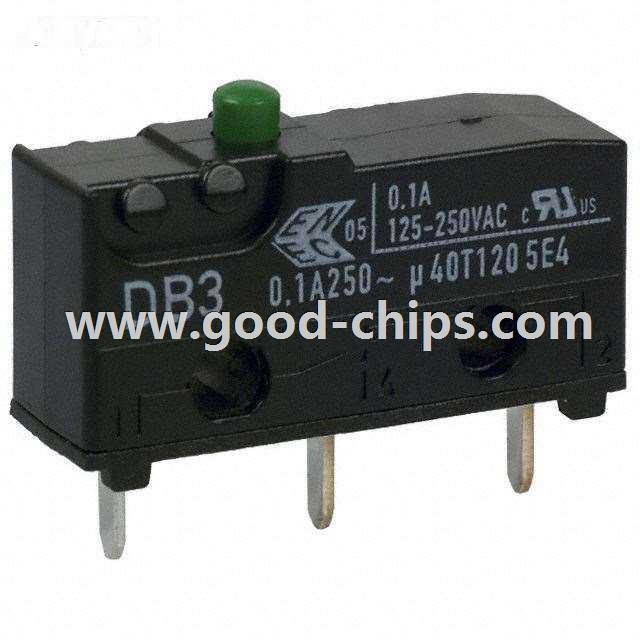

| Manufacturer Part Number: | DB3CC1AA |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DB3CC1AA Datasheet |
| Internal Part Number | 898-DB3CC1AA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Cherry | |
| Series | DB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 100mA (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | IP50 - Dust Protected | |
| Features | - | |
| Operating Force, Torque | 150gf | |
| Release Force | - | |
| Pretravel | 0.040" (1.0mm) | |
| Differential Travel | 0.004" (0.1mm) | |
| Overtravel | 0.025" (0.6mm) | |
| Operating Position | 0.330" (8.4mm) | |
| Mechanical Life | 15,000,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Operating Temperature | -40°C ~ 120°C | |
| Standard Package | 1,200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DB3CC1AA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DB3CC1AA is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of DB3CC1AA is new and unused, you can buy DB3CC1AA Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DB3CC1AA.
