Manufacturer Part Number: | DB-H25S |
---|---|
Manufacturer: | Bel Power Solutions |
Product Category: | D-Sub Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

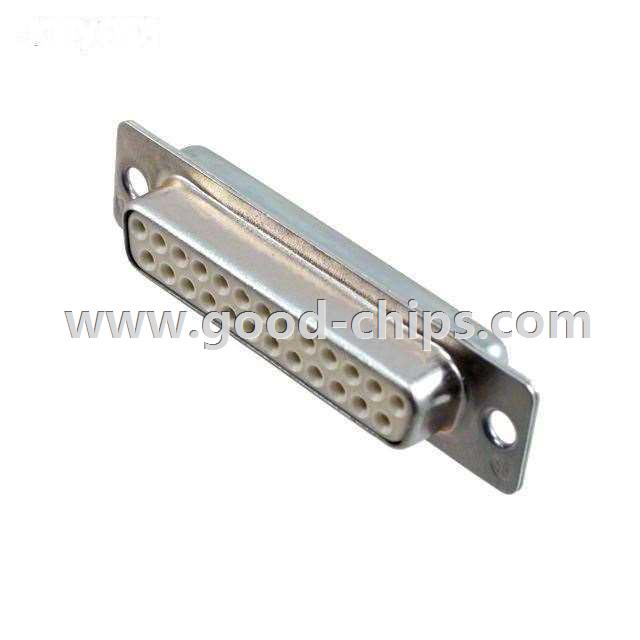

Description: | 25 Position D-Sub Receptacle, Female Sockets Connector, Panel Mount Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DB-H25S Datasheet |
Internal Part Number | 898-DB-H25S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Connectivity Solutions | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Cinch Connectivity Solutions | |
Series | BASIC® D | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 25 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 3 (DB, B) | |
Contact Type | Signal | |
Mounting Type | Panel Mount | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder Cup | |
Features | - | |
Shell Material, Finish | Steel, Zinc Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | - | |
Operating Temperature | -65°C ~ 125°C | |
Voltage Rating | - | |
Current Rating | 5A | |
Housing Material | Polyester, Glass Filled | |
Color | White | |
Standard Package | 750 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DB-H25S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DB-H25S is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of DB-H25S is new and unused, you can buy DB-H25S Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DB-H25S.
