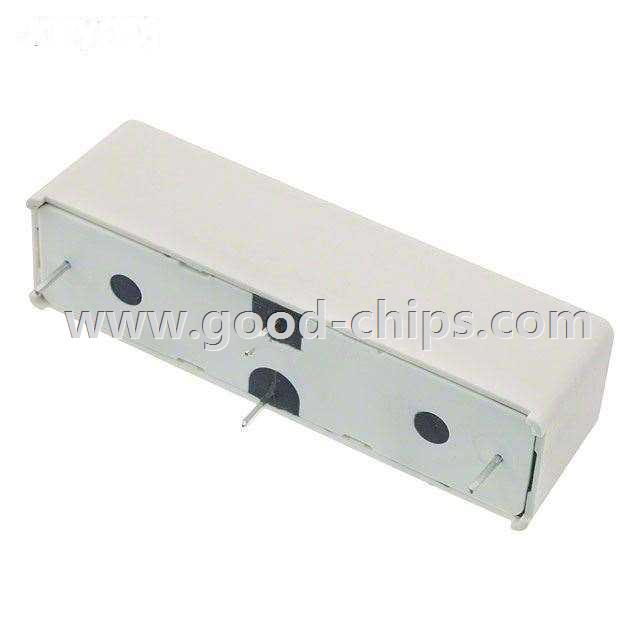

| Manufacturer Part Number: | DAT70515 |
|---|---|
| Manufacturer: | Cynergy 3 |
| Product Category: | Signal Relays, Up to 2 Amps |
| Available Quantity: | 9052 Pieces |
| Unit Price: | Quote by Email |
| Description: | Reed Relay SPST-NO (1 Form A) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DAT70515 Datasheet |
| Internal Part Number | 898-DAT70515 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Reed Relay Appl Notes | |
| Featured Product | D Series Reed Relays | |
| Online Catalog | D Series | |
| Category | Relays | |
| Family | Signal Relays, Up to 2 Amps | |
| Manufacturer | Cynergy 3 | |
| Series | D | |
| Packaging | Tray | |
| Part Status | Active | |
| Relay Type | Reed | |
| Coil Type | Non Latching | |
| Coil Current | 312.5mA | |
| Coil Voltage | 5VDC | |
| Contact Form | SPST-NO (1 Form A) | |
| Contact Rating (Current) | 2A | |
| Switching Voltage | 10000VAC, 10000VDC - Max | |
| Turn On Voltage (Max) | 3.7 VDC | |
| Turn Off Voltage (Min) | 0.5 VDC | |
| Operate Time | 3ms | |
| Release Time | 2ms | |
| Features | - | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Contact Material | Tungsten (W) | |
| Coil Power | - | |
| Coil Resistance | 16 Ohms | |
| Operating Temperature | -20°C ~ 70°C | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DAT70515 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DAT70515 is in stock for immediate shipping now. We are the distributor of Cynergy 3 all series components. The condition of DAT70515 is new and unused, you can buy DAT70515 Cynergy 3 with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DAT70515.
