Manufacturer Part Number: | DAP15P465TXLF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | D-Sub Connectors |
Available Quantity: | 9678 Pieces |
Unit Price: | Quote by Email |

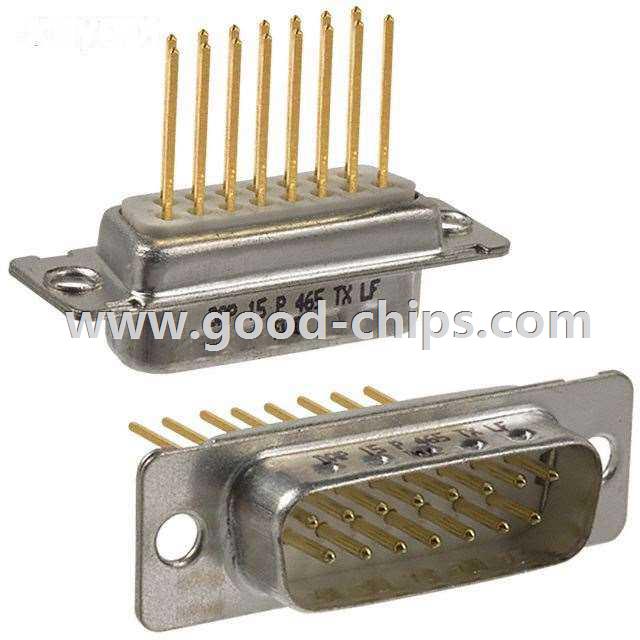

Description: | 15 Position D-Sub Plug, Male Pins Connector, Through Hole Wire Wrap |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DAP15P465TXLF Datasheet |
Internal Part Number | 898-DAP15P465TXLF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | dap15p465txlf_c.igs dap15p465txlf_c.prt dap15p465txlf_c.stp | |
PCN Design/Specification | Dsub Series Plating 05/Jun/2010 | |
Online Catalog | DP Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Amphenol FCI | |
Series | DP | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Plug, Male Pins | |
Number of Positions | 15 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 2 (DA, A) | |
Contact Type | Signal | |
Mounting Type | Through Hole | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Wire Wrap | |
Features | Grounding Indents | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold, GXT™ | |
Contact Finish Thickness | Flash | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | - | |
Current Rating | 7.5A | |
Housing Material | Thermoplastic | |
Color | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DAP15P465TXLF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DAP15P465TXLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of DAP15P465TXLF is new and unused, you can buy DAP15P465TXLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DAP15P465TXLF.
