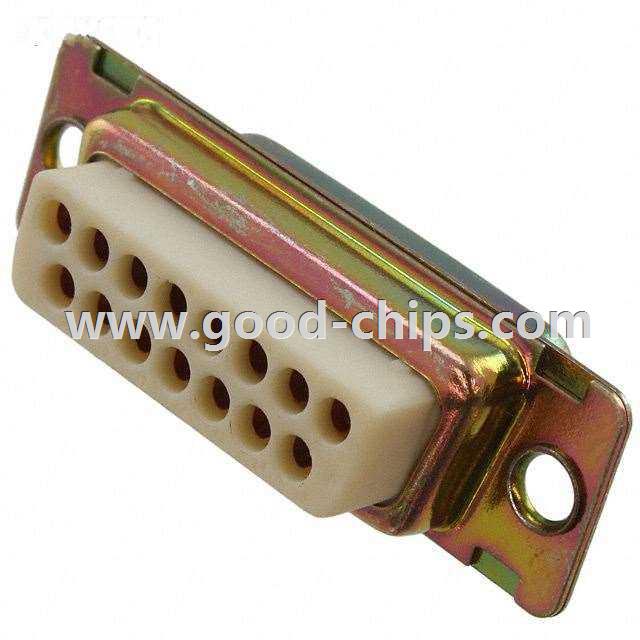

Manufacturer Part Number: | DAMA-15S-F0 |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | D-Sub, D-Shaped Connectors - Housings |
Available Quantity: | 9051 Pieces |
Unit Price: | Quote by Email |
Description: | Receptacle for Female Contacts Housing D-Sub, High Density Connector 15 Position |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DAMA-15S-F0 Datasheet |
Internal Part Number | 898-DAMA-15S-F0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | D-Subminiature Connector Series | |
Online Catalog | MIL-DTL-24308, DMA Series | |
Category | Connectors, Interconnects | |
Family | D-Sub, D-Shaped Connectors - Housings | |
Manufacturer | ITT Cannon, LLC | |
Series | MIL-DTL-24308, D*MA | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Sub, High Density | |
Connector Type | Receptacle for Female Contacts | |
Number of Positions | 15 | |
Number of Rows | 3 | |
Shell Size, Connector Layout | 1 (DE, E) High Density | |
Contact Type | Signal | |
Mounting Type | Free Hanging (In-Line) | |
Flange Feature | Housing/Shell (Unthreaded) | |
Features | - | |
Shell Material, Finish | Steel, Yellow Chromate Plated Zinc | |
Shell Finish Thickness | - | |
Note | Contacts Not Provided | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Mating Cycles | 200 | |
Dielectric Material | Thermoplastic | |
Color | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DAMA-15S-F0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DAMA-15S-F0 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of DAMA-15S-F0 is new and unused, you can buy DAMA-15S-F0 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DAMA-15S-F0.
