Manufacturer Part Number: | DAC7551IDRNTG4 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Data Acquisition - Digital to Analog Converters (DAC) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 12 Bit Digital to Analog Converter 1 12-USON (3x2) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DAC7551IDRNTG4 Datasheet |
Internal Part Number | 898-DAC7551IDRNTG4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Data Converter Basics | |
Manufacturer Product Page | DAC7551IDRNTG4 Specifications | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Digital to Analog Converters (DAC) | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Bits | 12 | |
Number of D/A Converters | 1 | |
Settling Time | 5µs | |
Output Type | Voltage - Buffered | |
Differential Output | No | |
Data Interface | SPI, DSP | |
Reference Type | External | |
Voltage - Supply, Analog | 2.7 V ~ 5.5 V | |
Voltage - Supply, Digital | 2.7 V ~ 5.5 V | |
INL/DNL (LSB) | ±0.35, ±0.08 | |
Architecture | String DAC | |
Operating Temperature | -40°C ~ 105°C | |

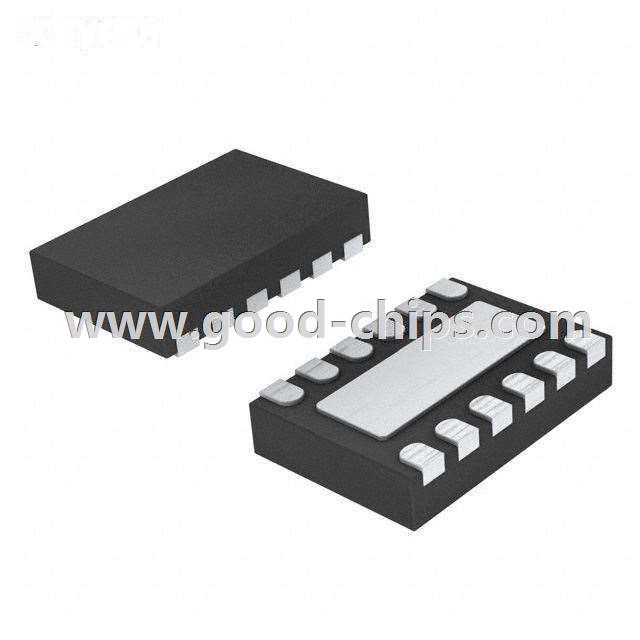

Package / Case | 12-UFDFN Exposed Pad | |
Supplier Device Package | 12-USON (3x2) | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DAC7551IDRNTG4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DAC7551IDRNTG4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of DAC7551IDRNTG4 is new and unused, you can buy DAC7551IDRNTG4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DAC7551IDRNTG4.
