| Manufacturer Part Number: | DAC5670IGDJ |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Data Acquisition - Digital to Analog Converters (DAC) |
| Available Quantity: | 9101 Pieces |
| Unit Price: | Quote by Email |
| Description: | 14 Bit Digital to Analog Converter 1 252-BGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DAC5670IGDJ Datasheet |
| Internal Part Number | 898-DAC5670IGDJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | DAC5670 Datasheet Update 9/Jun/2016 | |
| Online Catalog | 14 Bit | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital to Analog Converters (DAC) | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Number of Bits | 14 | |
| Number of D/A Converters | 1 | |
| Settling Time | 3.5µs (Typ) | |
| Output Type | Current - Unbuffered | |
| Differential Output | Yes | |
| Data Interface | Parallel | |
| Reference Type | External, Internal | |
| Voltage - Supply, Analog | 3 V ~ 3.6 V | |
| Voltage - Supply, Digital | 3 V ~ 3.6 V | |
| INL/DNL (LSB) | ±1.5, ±0.8 | |
| Architecture | Current Sink | |
| Operating Temperature | -40°C ~ 85°C | |

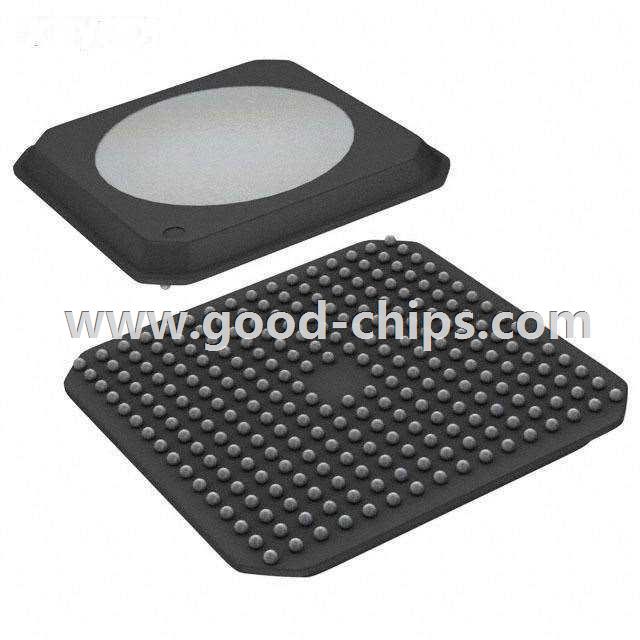

| Package / Case | 252-BGA | |
| Supplier Device Package | 252-BGA | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DAC5670IGDJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DAC5670IGDJ is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of DAC5670IGDJ is new and unused, you can buy DAC5670IGDJ Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DAC5670IGDJ.
