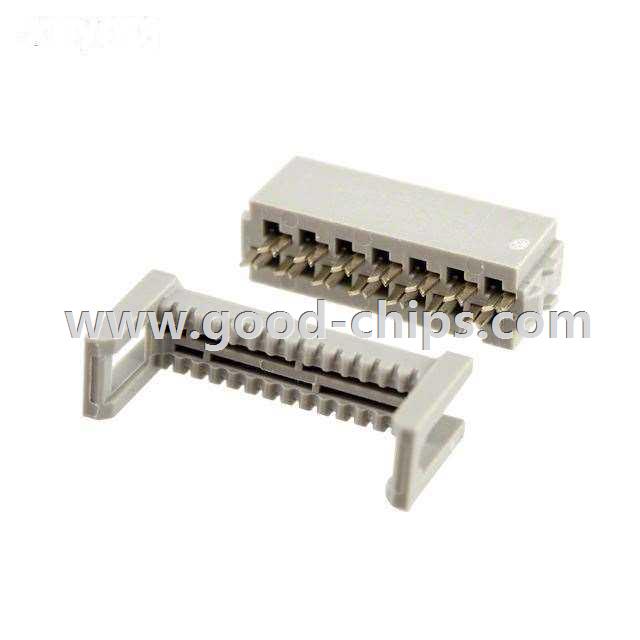

Manufacturer Part Number: | D89114-0031HK |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 10215 Pieces |
Unit Price: | Quote by Email |
Description: | 14 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | D89114-0031HK Datasheet |
Internal Part Number | 898-D89114-0031HK | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | IDC Wiremount Connectors Primer | |
3D Model | 89114-00x1.igs 89114-00x1.stp 89114-00x1.x_t | |
PCN Design/Specification | D89 Series Plating/Color 24/Sept/2010 | |
Online Catalog | 891 and D89 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | 3M | |
Series | D89 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 14 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | IDC | |
Wire Type | Ribbon Cable | |
Wire Gauge | 26-28 AWG | |
Features | Feed Through | |
Contact Finish | Gold | |
Contact Finish Thickness | 15µin (0.38µm) | |
Color | Gray | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | D89114-0031HK | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
D89114-0031HK is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of D89114-0031HK is new and unused, you can buy D89114-0031HK 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for D89114-0031HK.
