Manufacturer Part Number: | D5W5P36A6GL3BLF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | D-Sub Connectors |
Available Quantity: | 9242 Pieces |
Unit Price: | Quote by Email |

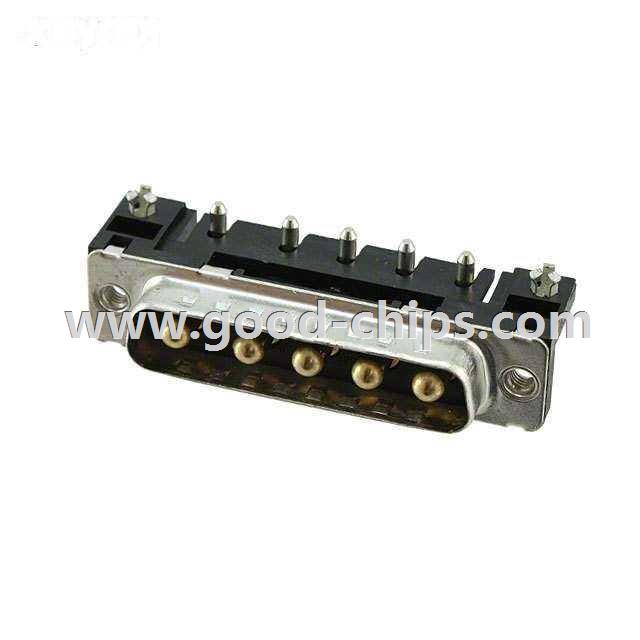

Description: | 5 (Power) Position D-Sub, Combo Plug, Male Pins Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | D5W5P36A6GL3BLF Datasheet |
Internal Part Number | 898-D5W5P36A6GL3BLF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | d5w5p36a6gl3blf.igs d5w5p36a6gl3blf.stp | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Amphenol FCI | |
Series | Delta D | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Style | D-Sub, Combo | |
Connector Type | Plug, Male Pins | |
Number of Positions | 5 (Power) | |
Number of Rows | 1 | |
Shell Size, Connector Layout | 3 (DB, B) - 5W5 | |
Contact Type | Power | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Housing/Shell (M3) | |
Termination | Solder | |
Features | Board Lock | |
Shell Material, Finish | Steel, Tin/Zinc Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | 300V | |
Current Rating | - | |
Housing Material | Polyester | |
Color | - | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | D5W5P36A6GL3BLF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
D5W5P36A6GL3BLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of D5W5P36A6GL3BLF is new and unused, you can buy D5W5P36A6GL3BLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for D5W5P36A6GL3BLF.
