| Manufacturer Part Number: | D53TP25DH |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Solid State Relays |
| Available Quantity: | 9018 Pieces |
| Unit Price: | Quote by Email |

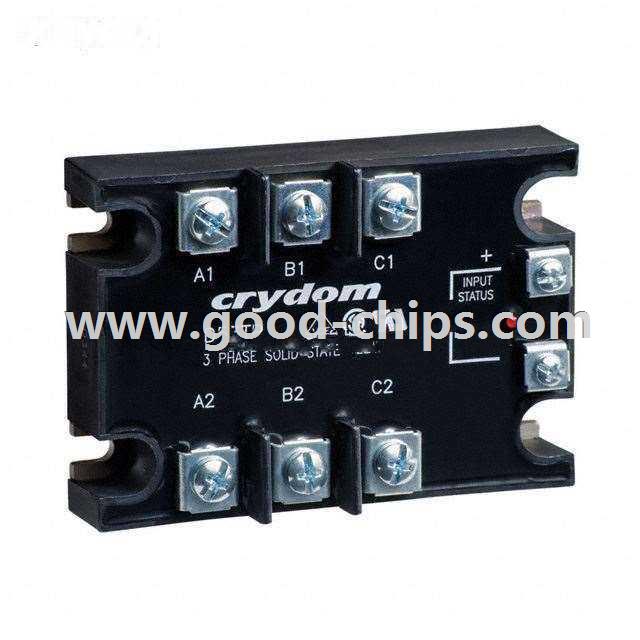

| Description: | Solid State Relay 3PST (3 Form A) Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | D53TP25DH Datasheet |
| Internal Part Number | 898-D53TP25DH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| Product Training Modules | Solid State Relays | |
| 3D Model | 53TP Series.sat 53TP Series.dwg 53TP Series.stp | |
| Online Catalog | 53TP Series | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Crydom Co. | |
| Series | 53TP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | 3PST (3 Form A) | |
| Output Type | AC, Zero Cross | |
| On-State Resistance (Max) | - | |
| Load Current | 25A | |
| Voltage - Input | 4 ~ 32VDC | |
| Voltage - Load | 48 ~ 530 V | |
| Mounting Type | Chassis Mount or Panel Mount | |
| Termination Style | Screw Terminal | |
| Package / Case | Module | |
| Supplier Device Package | - | |
| Relay Type | Relay | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | D53TP25DH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
D53TP25DH is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of D53TP25DH is new and unused, you can buy D53TP25DH Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for D53TP25DH.
