| Manufacturer Part Number: | D2D0406N |
|---|---|
| Manufacturer: | Electroswitch |
| Product Category: | Rotary Switches |
| Available Quantity: | 9019 Pieces |
| Unit Price: | Quote by Email |

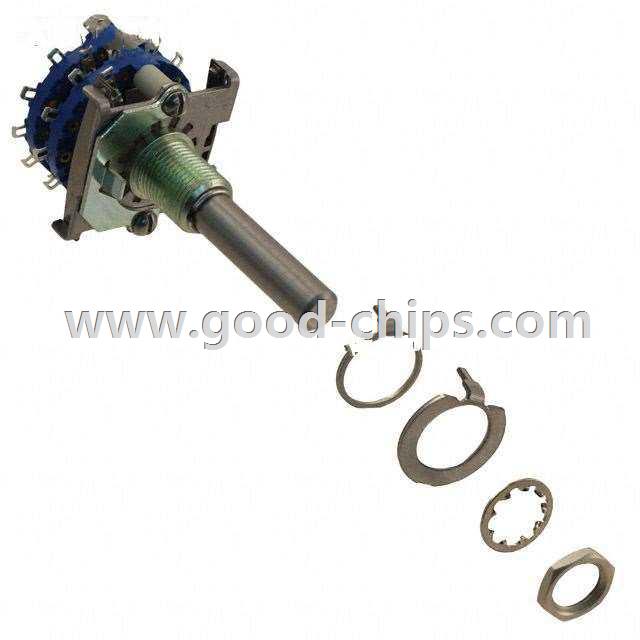

| Description: | Rotary Switch 2 ~ 6 Position DP6T 250mA (AC), 550mA (DC) 115VAC Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | D2D0406N Datasheet |
| Internal Part Number | 898-D2D0406N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | D2 Series Adjustable Stop Instr | |
| Product Training Modules | Rotary Switch Design Considerations | |
| Online Catalog | D2 Series | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | Electroswitch | |
| Series | D2 | |
| Part Status | Active | |
| Number of Positions | 2 ~ 6 | |
| Index Stops | Adjustable | |
| Number of Decks | 2 | |
| Number of Poles per Deck | 2 | |
| Circuit per Deck | DP6T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 250mA (AC), 550mA (DC) | |
| Voltage Rating - AC | 115V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Round (6.35mm Dia) | |
| Actuator Length | 25.40mm | |
| Angle of Throw | 30° | |
| Contact Material | Brass | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | - | |
| Depth Behind Panel | 18.34mm | |
| Panel Cutout Dimensions | Circular - 9.78mm Dia | |
| Operating Force, Torque | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | D2D0406N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
D2D0406N is in stock for immediate shipping now. We are the distributor of Electroswitch all series components. The condition of D2D0406N is new and unused, you can buy D2D0406N Electroswitch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for D2D0406N.
