D25S33E4GV00LF

D25S33E4GV00LF
Manufacturer Part Number:D25S33E4GV00LF
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:9333 Pieces
Unit Price:Quote by Email

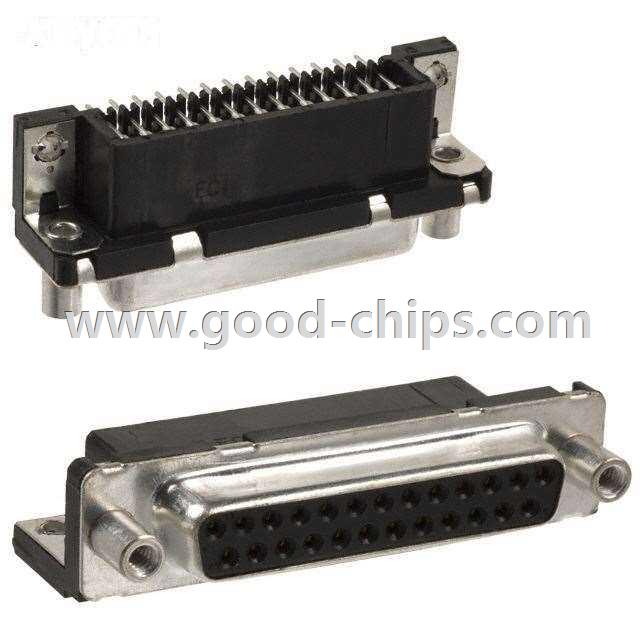

Description:25 Position D-Sub Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: D25S33E4GV00LF Datasheet
D25S33E4GV00LF´s Parameters
Internal Part Number898-D25S33E4GV00LF
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesD-Sub I/O Connectors
3D Modeld25S33E4GV00LF.igs
d25S33E4GV00LF.prt
d25S33E4GV00LF.stp
PCN Design/SpecificationDsub Insulator Raw Material 24/Nov/2009
Delta D Series 30/May/2011
Delta-D Documentation 07/Nov/2014
Delta-D Drawing 12/Nov/2014
Online Catalog Delta D Series
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
ManufacturerAmphenol FCI
SeriesDelta D
PackagingTray
Part StatusActive
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Number of Positions25
Number of Rows2
Shell Size, Connector Layout3 (DB, B)
Contact TypeSignal
Mounting TypeThrough Hole, Right Angle
Flange FeatureMating Side, Female Screwlock (4-40)
TerminationSolder
FeaturesBoard Lock
Shell Material, FinishSteel, Tin Plated
Contact FinishGold
Contact Finish ThicknessFlash
Ingress Protection-
Operating Temperature-55°C ~ 125°C
Voltage Rating300V
Current Rating5A
Housing MaterialPolybutylene Terephthalate (PBT)
ColorBlack
Standard Package 20
Weight0.001 KG
ApplicationEmail for details
Replacement PartD25S33E4GV00LF
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

D25S33E4GV00LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of D25S33E4GV00LF is new and unused, you can buy D25S33E4GV00LF Amphenol FCI with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for D25S33E4GV00LF.
