| Manufacturer Part Number: | D01-9922046 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Rectangular Connectors - Headers, Specialty Pin |
| Available Quantity: | 9818 Pieces |
| Unit Price: | Quote by Email |

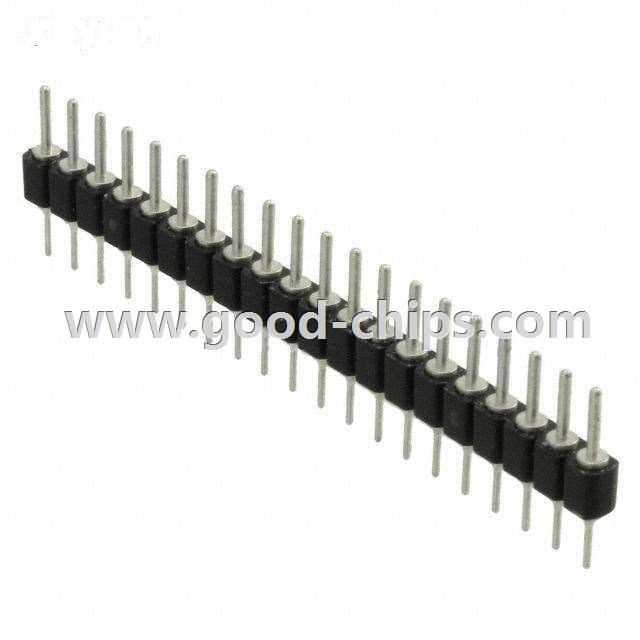

| Description: | 20 Position SIP, SIL - Header Connector Male Pin Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | D01-9922046 Datasheet |
| Internal Part Number | 898-D01-9922046 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Harwin Inc | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Specialty Pin | |
| Manufacturer | Harwin Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | SIP, SIL - Header | |
| Contact Type | Male Pin | |
| Number of Positions | 20 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 137.8µin (3.50µm) | |
| Color | Black | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | D01-9922046 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
D01-9922046 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of D01-9922046 is new and unused, you can buy D01-9922046 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for D01-9922046.
