| Manufacturer Part Number: | CZRZ4V7B-HF |
|---|---|
| Manufacturer: | Comchip Technology |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 4.7V 100mW Surface Mount 0201/DFN0603 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CZRZ4V7B-HF Datasheet |
| Internal Part Number | 898-CZRZ4V7B-HF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | PCN140502 23/May/2014 | |
| PCN Packaging | Label D/C Chg24/Mar/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SMD Zener Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Comchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 4.7V | |
| Tolerance | - | |
| Power - Max | 100mW | |
| Impedance (Max) (Zzt) | 100 Ohm | |
| Current - Reverse Leakage @ Vr | 2µA @ 1V | |
| Voltage - Forward (Vf) (Max) @ If | 900mV @ 10mA | |
| Operating Temperature | 150°C | |
| Mounting Type | Surface Mount | |

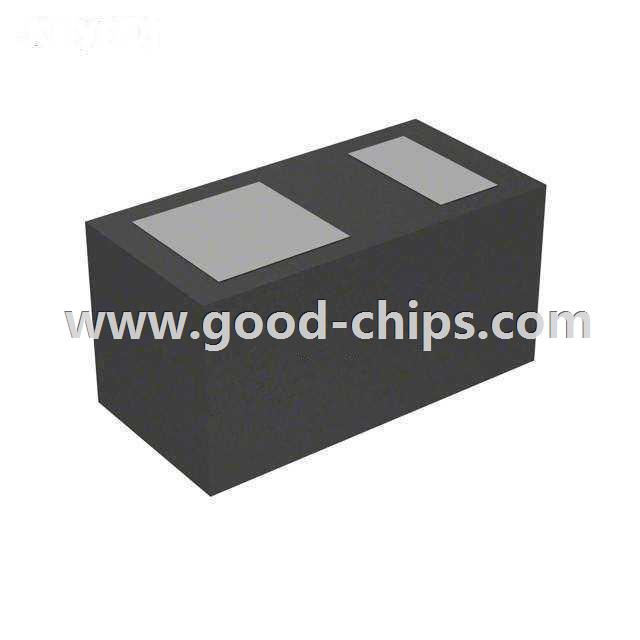

| Package / Case | 0201 (0603 Metric) | |
| Supplier Device Package | 0201/DFN0603 | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CZRZ4V7B-HF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CZRZ4V7B-HF is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CZRZ4V7B-HF is new and unused, you can buy CZRZ4V7B-HF Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CZRZ4V7B-HF.
