| Manufacturer Part Number: | CYUSB3014-BZXC |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Embedded - Microcontrollers - Application Specific |
| Available Quantity: | 11220 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC ARM9 USB3 CONTROLLER 121FBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CYUSB3014-BZXC Datasheet |
| Internal Part Number | 898-CYUSB3014-BZXC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | FX3 USB 3.0 Solution for HD Video | |
| Featured Product | EZ-USB® FX3™ USB Controller | |
| Reference Design Library | CYUSB3KIT-003: USB 3.0 Host/Controller | |
| PCN Assembly/Origin | 48BGA-121BGA 24/Jun/2016 | |
| PCN Other | Multiple Updates 27/Mar/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | EZ-USB FX3™ | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers - Application Specific | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | EZ-USB FX3™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Applications | USB Host/Peripheral Controller | |
| Core Processor | ARM9® | |
| Program Memory Type | External Program Memory | |
| Controller Series | CYUSB | |
| RAM Size | 512K x 8 | |
| Interface | GPIF, I²C, I²S, SPI, UART, USB | |
| Number of I/O | 60 | |
| Voltage - Supply | 1.15 V ~ 1.25 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

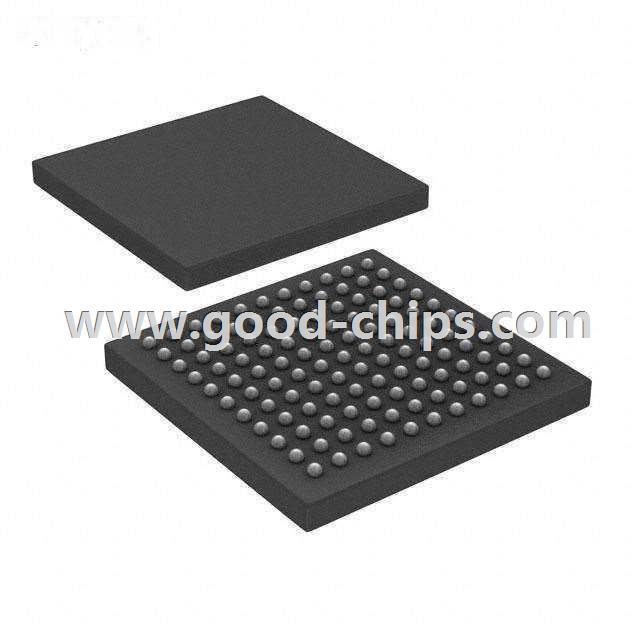

| Package / Case | 121-TFBGA | |
| Supplier Device Package | 121-FBGA (10x10) | |
| Standard Package | 168 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CYUSB3014-BZXC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CYUSB3014-BZXC is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CYUSB3014-BZXC is new and unused, you can buy CYUSB3014-BZXC Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CYUSB3014-BZXC.
