| Manufacturer Part Number: | CY8CLED04D01-56LTXI |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Embedded - Microcontrollers - Application Specific |
| Available Quantity: | 9321 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MCU 8BIT 16KB FLASH 56VQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY8CLED04D01-56LTXI Datasheet |
| Internal Part Number | 898-CY8CLED04D01-56LTXI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | PowerPSoC® Embedded Power Controller CapSense Sensing Technology | |
| PCN Assembly/Origin | Wafer Test Site Addition 29/Jun/2015 | |
| PCN Other | Multiple Updates 27/Mar/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers - Application Specific | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PowerPSoC® CY8CLED | |
| Packaging | Tray | |
| Part Status | Active | |
| Applications | Intelligent LED Driver | |
| Core Processor | M8C | |
| Program Memory Type | FLASH (16 KB) | |
| Controller Series | CY8CLED | |
| RAM Size | 1K x 8 | |
| Interface | DALI, DMX512, I²C, IrDA, SPI, UART/USART | |
| Number of I/O | 14 | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

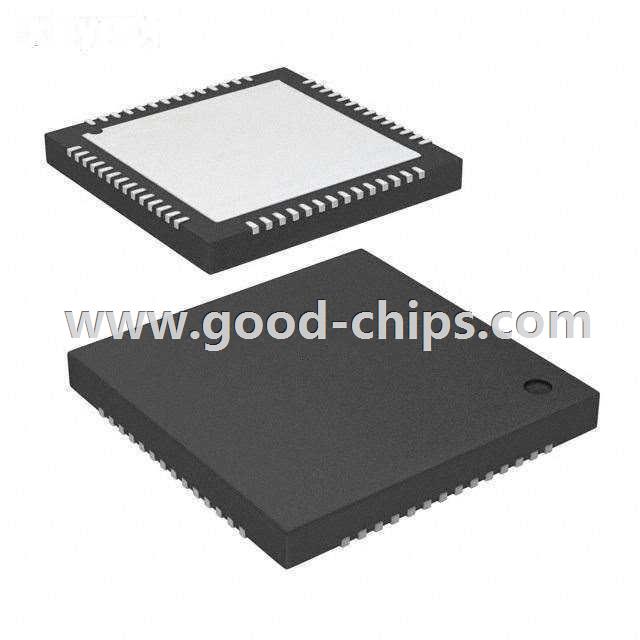

| Package / Case | 56-VFQFN Exposed Pad | |
| Supplier Device Package | 56-QFN (8x8) | |
| Standard Package | 260 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY8CLED04D01-56LTXI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY8CLED04D01-56LTXI is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY8CLED04D01-56LTXI is new and unused, you can buy CY8CLED04D01-56LTXI Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY8CLED04D01-56LTXI.
