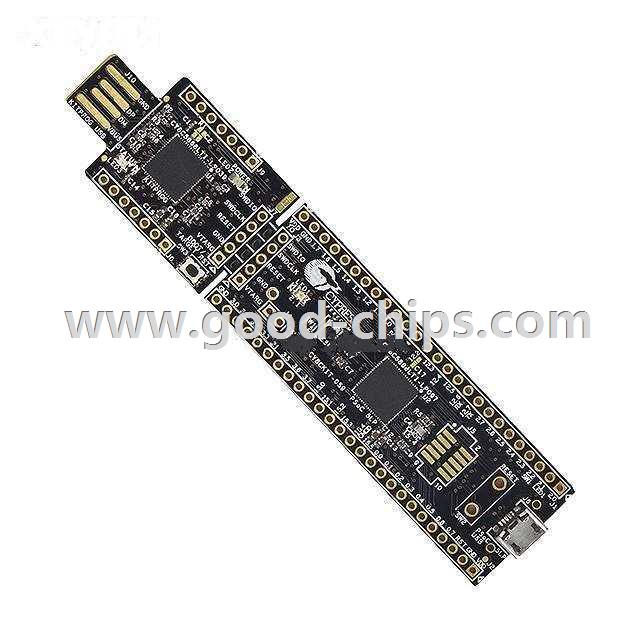

| Manufacturer Part Number: | CY8CKIT-059 |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9829 Pieces |
| Unit Price: | Quote by Email |
| Description: | CY8C58LP PSOC® 5LP MCU 32-Bit ARM® Cortex®-M3 Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY8CKIT-059 Datasheet |
| Internal Part Number | 898-CY8CKIT-059 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | PSoC® 3 and PSoC 5LP Interrupts PSoC® 3 and PSoC 5LP - Segment LCD Direct Drive SIO Tips and Tricks in PSoC® 3 / PSoC 5LP PSoC® 3, PSoC 4, and PSoC 5LP – Designing PSoC Creator™ Components With UDB Datapaths PSoC® 3 and PSoC 5LP - Single-Cell Lithium-Ion (Li-ion) Battery Charger Implementing State Machines with PSoC® 3, PSoC 4, and PSoC 5LP PSoC® 3, PSoC 4, and PSoC 5LP UART Bootloader | |
| Product Training Modules | PSoC 3 and PSoC 5LP Solution for Power Supervision | |
| Video File | How to blink an LED using a Firmware with PSoC 5LP How to Blink an LED Using a PWM Component with PSoC 5LP How to Get Started with CapSense and PSoC 5LP How to Get Started with an ADC, DMA and VDAC Example Projects for PSoC 5LP How to Get Started with an Opamp Example Projects for PSoC 5LP Cypress PSOC 5LC – Another Geek Moment | |
| Design Resources | CY8CKIT-059 Kit Only Files Development Tool Selector | |
| Featured Product | CY8CKIT-059 PSoC® 5LP Prototyping Kit CapSense Sensing Technology PSoC Dev Kits | |
| Online Catalog | PSoC® 5LP Prototyping Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PSOC® 5LP | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | MCU 32-Bit | |
| Core Processor | ARM® Cortex®-M3 | |
| Operating System | - | |
| Platform | - | |
| For Use With/Related Products | CY8C58LP | |
| Mounting Type | Fixed | |
| Contents | Board(s) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY8CKIT-059 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY8CKIT-059 is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY8CKIT-059 is new and unused, you can buy CY8CKIT-059 Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY8CKIT-059.
