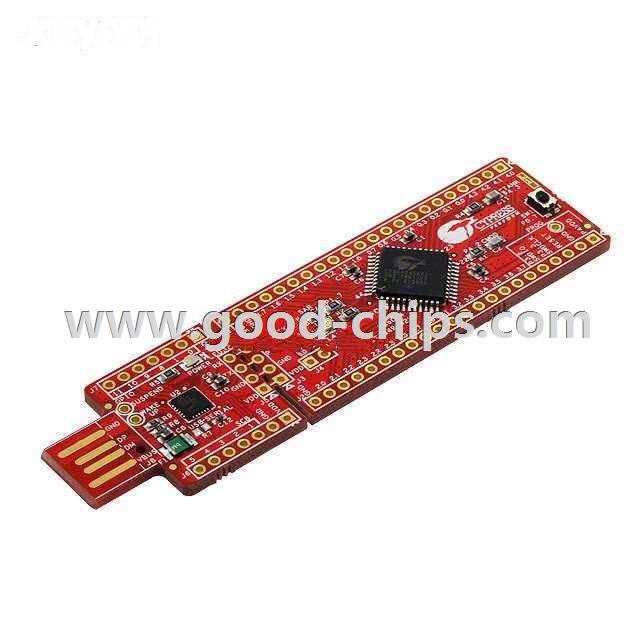

| Manufacturer Part Number: | CY8CKIT-049-42XX |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9425 Pieces |
| Unit Price: | Quote by Email |
| Description: | CY8C42xx PSOC® 4 MCU 32-Bit ARM® Cortex®-M0 Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY8CKIT-049-42XX Datasheet |
| Internal Part Number | 898-CY8CKIT-049-42XX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | PSoC Creator 101 Lesson 4: Let’s Get an LED to Blink Part 1 PSoC Creator 101 Lesson 3: Getting to Know PSoC Creator PSoC Creator 101 Lesson 6: Let’s Get CapSense Working PSoC Creator 101 Lesson 8: PSoC Resources PSoC Creator 101 Lesson 5: Let’s Get an LED to Blink Part 2 PSoC Creator 101 Lesson 2: Introduction to PSoC PSoC Creator 101 Lesson 7: IDE Export PSoC Creator 101 Lesson 1: Introduction PSoC Today! T.J. Rodgers discusses PSoC 4 PSoC Creator 101: CY8CKIT-049 Prototyping Kit Reset and Return to Bootloader Project PSoC Creator 101: CY8CKIT-049 Prototyping Kit New Bootloadable PSoC Creator 101: CY8CKIT-049 Prototyping Kit Getting Started PSoC Creator 101: CY8CKIT-049 Prototyping Kit Proximity Project PSoC Creator 101: PSoC Creator File Structure PSoC Creator 101: PSoC 4200 Low Power Modes - Using the Sleep Mode PSoC Creator 101: PSoC 4200 Low Power Modes - Tips and Tricks PSoC Creator 101: PSoC 4200 Low Power Modes PSoC Creator 101: CY8CKIT-049 Prototyping Kit CapSense Project How to Get Started with PSoC 4 by Turning On/Off an LED How to Get Started with PSoC 4 by Toggling an LED | |
| Design Resources | Getting Started with PSoC 4 Prototyping Kits – CY8CKIT-049 Development Tool Selector | |
| Featured Product | PSoC® 4 CY8CKIT-049 4xxx Prototyping Kits CapSense Sensing Technology PSoC Dev Kits | |
| Online Catalog | PSoC® 4 CY8CKIT-049 4xxx Prototyping Kits | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PSOC® 4 | |
| Part Status | Active | |
| Board Type | Evaluation Platform | |
| Type | MCU 32-Bit | |
| Core Processor | ARM® Cortex®-M0 | |
| Operating System | - | |
| Platform | - | |
| For Use With/Related Products | CY8C42xx | |
| Mounting Type | Fixed | |
| Contents | Board(s) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY8CKIT-049-42XX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY8CKIT-049-42XX is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY8CKIT-049-42XX is new and unused, you can buy CY8CKIT-049-42XX Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY8CKIT-049-42XX.
