| Manufacturer Part Number: | CY8CKIT-007 |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

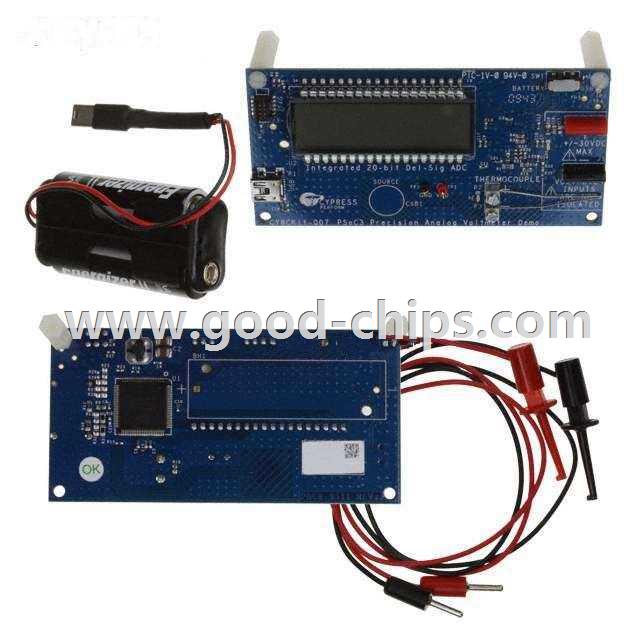

| Description: | PSoC™3 PSOC® 3 Series Test and Measurement, Analog Voltmeter Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY8CKIT-007 Datasheet |
| Internal Part Number | 898-CY8CKIT-007 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | CY8CKIT-007 Schematic CY8CKIT-007 Layout Development Tool Selector | |
| Featured Product | PSoC Programmable System-on-Chip CapSense Sensing Technology | |
| PCN Obsolescence/ EOL | Multiple Devices 15/Apr/2011 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PSOC® 3 | |
| Part Status | Obsolete | |
| Main Purpose | Test and Measurement, Analog Voltmeter | |
| Embedded | Yes, MCU, 32-Bit | |
| Utilized IC / Part | PSoC™3 | |
| Primary Attributes | Input Sync-Tip Clamps with Filters | |
| Secondary Attributes | Thermocouple on Board | |
| Supplied Contents | Board, CD, Mini-Hook Leads, Power Pack with Batteries | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY8CKIT-007 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY8CKIT-007 is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY8CKIT-007 is new and unused, you can buy CY8CKIT-007 Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY8CKIT-007.
