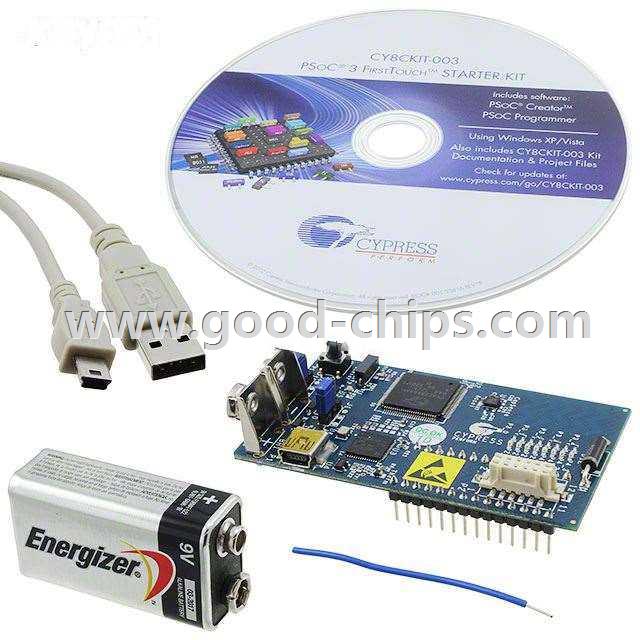

| Manufacturer Part Number: | CY8CKIT-003B |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CY8C3866AXI PSOC® 3 FirstTouch™ MCU 8-Bit 8051 Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY8CKIT-003B Datasheet |
| Internal Part Number | 898-CY8CKIT-003B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Getting Started with PSoC 3 Application Note | |
| Design Resources | Development Tool Selector | |
| Featured Product | CapSense Sensing Technology | |
| PCN Obsolescence/ EOL | CY8CKIT-003B Kit 18/Nov/2013 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PSOC® 3 FirstTouch™ | |
| Part Status | Obsolete | |
| Board Type | Evaluation Platform | |
| Type | MCU 8-Bit | |
| Core Processor | 8051 | |
| Operating System | - | |
| Platform | - | |
| For Use With/Related Products | CY8C3866AXI | |
| Mounting Type | Fixed | |
| Contents | Board(s), Cable(s), Accessories | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY8CKIT-003B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY8CKIT-003B is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY8CKIT-003B is new and unused, you can buy CY8CKIT-003B Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY8CKIT-003B.
