Manufacturer Part Number: | CY8C4014LQI-421T |
---|---|
Manufacturer: | Cypress Semiconductor Corp |
Product Category: | Embedded - Microcontrollers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | ARM® Cortex®-M0 PSOC® 4 CY8C4000 Microcontroller IC 32-Bit 16MHz 16KB (16K x 8) FLASH 16-QFN (3x3) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CY8C4014LQI-421T Datasheet |
Internal Part Number | 898-CY8C4014LQI-421T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | PSoC 4000: Low-Cost 32-Bit MCU PSoC 4100 & 4200 Programmable System-on-Chip | |
Design Resources | Development Tool Selector | |
Featured Product | CapSense Sensing Technology | |
PCN Assembly/Origin | Die Attach Film Update 15/Jun/2015 Wafer Fab Site 12/Feb/2016 Qualification Advance Notice 20/May/2016 | |
Category | Integrated Circuits (ICs) | |
Family | Embedded - Microcontrollers | |
Manufacturer | Cypress Semiconductor Corp | |
Series | PSOC® 4 CY8C4000 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Core Processor | ARM® Cortex®-M0 | |
Core Size | 32-Bit | |
Speed | 16MHz | |
Connectivity | I²C | |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
Number of I/O | 16 | |
Program Memory Size | 16KB (16K x 8) | |
Program Memory Type | FLASH | |
EEPROM Size | - | |
RAM Size | 2K x 8 | |
Voltage - Supply (Vcc/Vdd) | 1.71 V ~ 5.5 V | |
Data Converters | D/A 1x7b, 1x8b | |
Oscillator Type | Internal | |
Operating Temperature | -40°C ~ 85°C (TA) | |

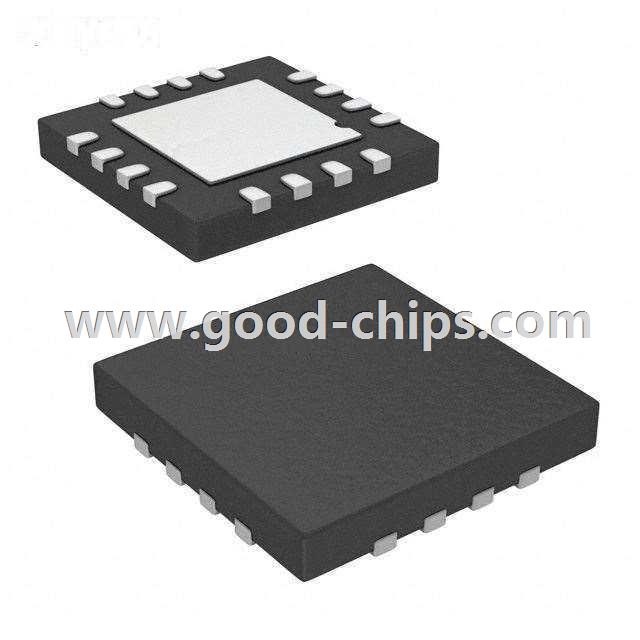

Package / Case | 16-UFQFN Exposed Pad | |
Supplier Device Package | 16-QFN (3x3) | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CY8C4014LQI-421T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CY8C4014LQI-421T is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY8C4014LQI-421T is new and unused, you can buy CY8C4014LQI-421T Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY8C4014LQI-421T.
