| Manufacturer Part Number: | CY8C20334-12LKXI |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | M8C PSOC®1 CY8C20xxx Microcontroller IC 8-Bit 12MHz 8KB (8K x 8) FLASH 24-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY8C20334-12LKXI Datasheet |
| Internal Part Number | 898-CY8C20334-12LKXI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | CapSense Sensing Technology | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PSOC®1 CY8C20xxx | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | M8C | |
| Core Size | 8-Bit | |
| Speed | 12MHz | |
| Connectivity | I²C, SPI | |
| Peripherals | LVD, POR, WDT | |
| Number of I/O | 20 | |
| Program Memory Size | 8KB (8K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 512 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.4 V ~ 5.25 V | |
| Data Converters | - | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

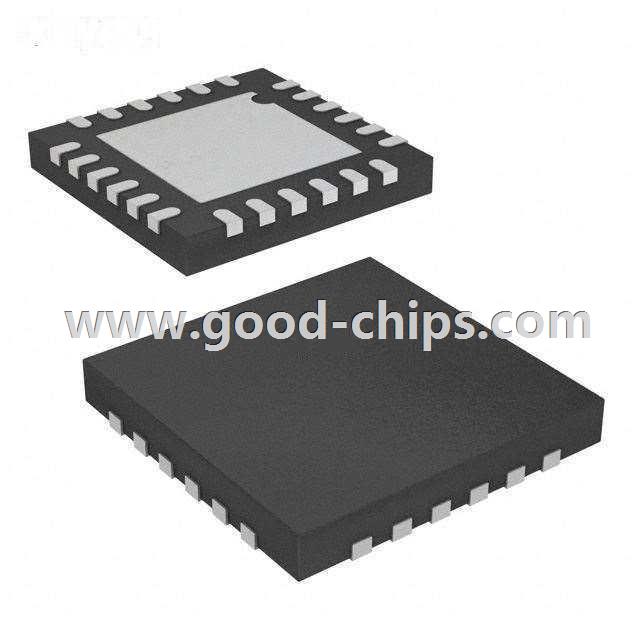

| Package / Case | 24-UFQFN Exposed Pad | |
| Supplier Device Package | 24-QFN (4x4) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY8C20334-12LKXI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY8C20334-12LKXI is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY8C20334-12LKXI is new and unused, you can buy CY8C20334-12LKXI Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY8C20334-12LKXI.
