| Manufacturer Part Number: | CY3280-MBR3 |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9037 Pieces |
| Unit Price: | Quote by Email |

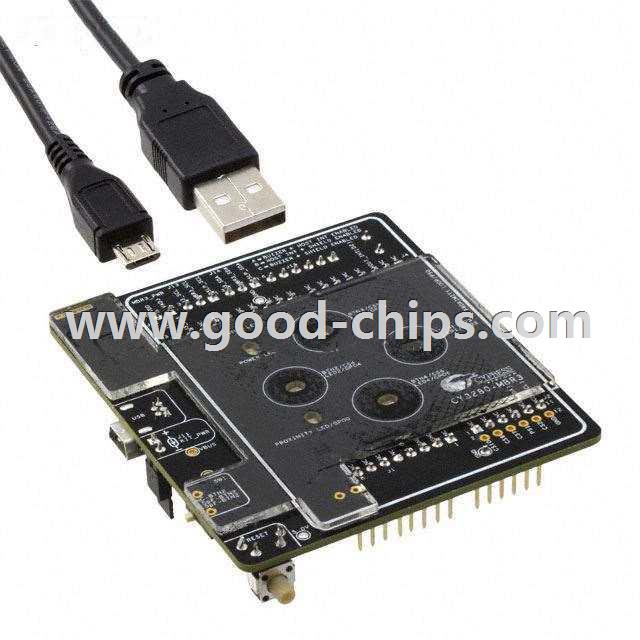

| Description: | CY8CMBR3116 CapSense® Express™ Touch, Capacitive Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY3280-MBR3 Datasheet |
| Internal Part Number | 898-CY3280-MBR3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | CapSense Mechanical Button Replacement (MBR) | |
| Video File | Design Guidetool Walkthrough for MBR2044 CapSense CY3280-MBR Evaluation Kit Demo Video CapSense Express With SmartSense Demo Introduction to CapSense Controller Code Example Design Guide CapSense Layout Best Practices Video - Part 2 CapSense Layout Best Practices Video - Part1 AEK-CY8C20xx7 QuietZone CapSense Starter Kit Demonstration Video CapSense Introducing Cypress Capacitive Touch-Sensing Technology An Intro to Cypress SmartSense Implementing water tolerance buttons with the CY8C20xx7S QuietZone Controller Implementing Proximity with the CY8C20xx7S QuietZone Controller Introduction to CY3280-MBR3 CapSense MBR3 Evaluation Kit Introducing Cypress CapSense MBR3 | |
| Design Resources | CY8CMBR3 Design Guide Development Tool Selector | |
| Featured Product | CY3280-MBR3 CapSense® MBR3 Evaluation Kit CapSense Sensing Technology | |
| Online Catalog | CY3280-MBR3 Evaluation Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | CapSense® Express™ | |
| Part Status | Active | |
| Sensor Type | Touch, Capacitive | |
| Sensing Range | 4 Buttons/Keys | |
| Interface | - | |
| Sensitivity | - | |
| Voltage - Supply | 5V, USB | |
| Embedded | - | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | CY8CMBR3116 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY3280-MBR3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY3280-MBR3 is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY3280-MBR3 is new and unused, you can buy CY3280-MBR3 Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY3280-MBR3.
