| Manufacturer Part Number: | CY3280-22X45 |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | CY8C22X45 CapSense® Series Interface, Sensor, CapSense® Touch Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY3280-22X45 Datasheet |
| Internal Part Number | 898-CY3280-22X45 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | CY3280-22X45 Board Design Files Development Tool Selector | |
| Online Catalog | CY3280-22X45 Universal CapSense® Controller Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | CapSense® | |
| Part Status | Active | |
| Main Purpose | Interface, Sensor, CapSense® Touch | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | CY8C22X45 | |
| Primary Attributes | Requires CY3280 Module Board | |
| Secondary Attributes | CD Contains Sample Projects | |

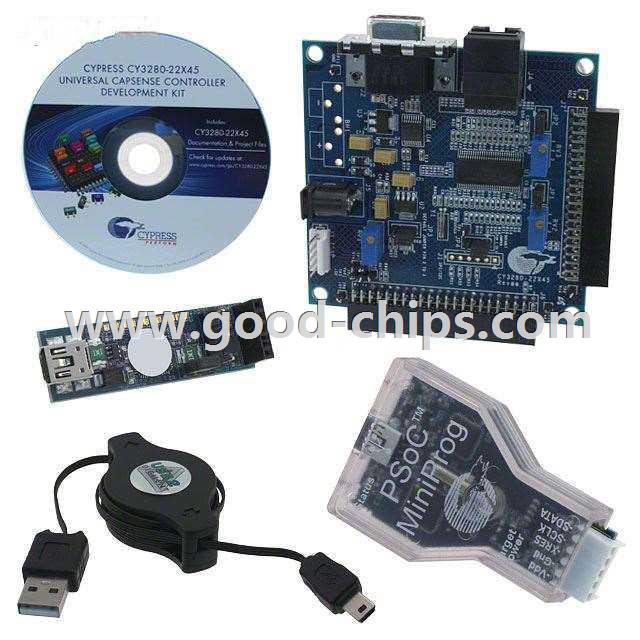

| Supplied Contents | 2 Boards, CD, Documentation, MiniProg1 Programmer, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY3280-22X45 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY3280-22X45 is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY3280-22X45 is new and unused, you can buy CY3280-22X45 Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY3280-22X45.
