| Manufacturer Part Number: | CY3268 |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

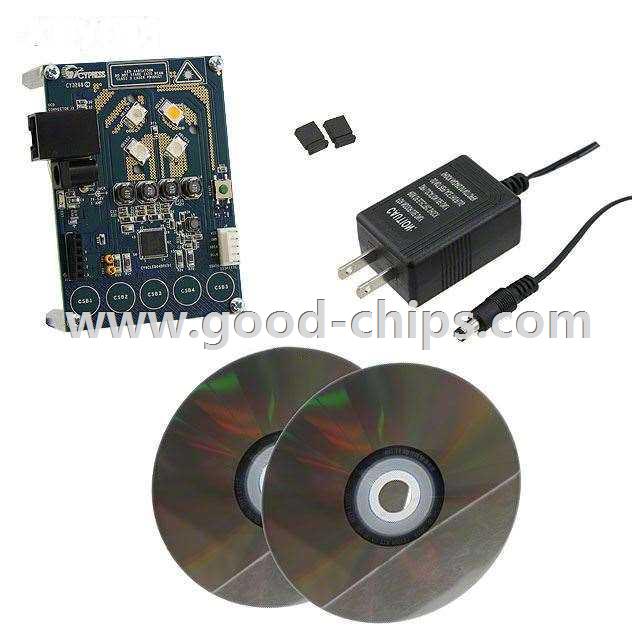

| Description: | CY8CLEDxx PowerPSoC® Series 4, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY3268 Datasheet |
| Internal Part Number | 898-CY3268 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | CY3268 Board Design Files Development Tool Selector Lighting Product Selector | |
| Featured Product | CapSense Sensing Technology | |
| PCN Obsolescence/ EOL | Multiple Devices 13/Jun/2013 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PowerPSoC® | |
| Part Status | Obsolete | |
| Current - Output / Channel | 1A | |
| Outputs and Type | 4, Non-Isolated | |
| Voltage - Output | 32V | |
| Features | Dimmable, I²C Interface | |
| Voltage - Input | 32V | |
| Supplied Contents | Board, Power Supply | |
| Utilized IC / Part | CY8CLEDxx | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY3268 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY3268 is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY3268 is new and unused, you can buy CY3268 Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY3268.
