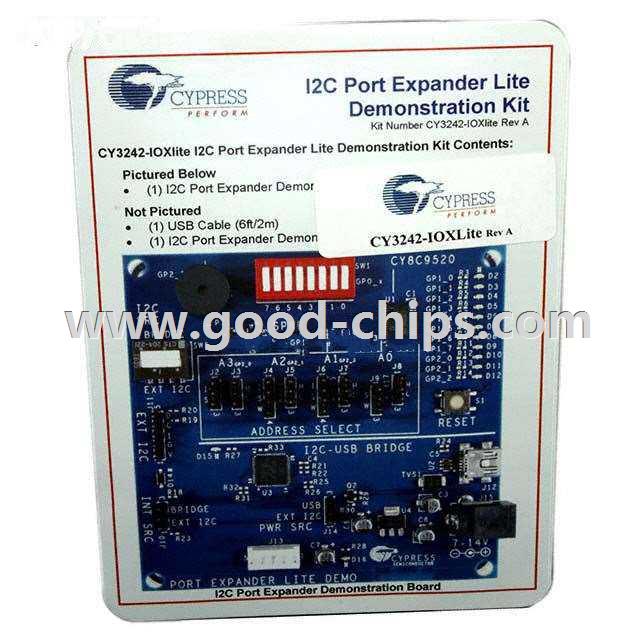

| Manufacturer Part Number: | CY3242-IOXLITE |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CY8C24894, CY8C9520 PSoC® Series Interface, GPIO Expander Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY3242-IOXLITE Datasheet |
| Internal Part Number | 898-CY3242-IOXLITE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | CY3242-IOXLITE Schematic CY3242-IOXLITE Bill of Materials CY3242-IOXLITE Gerber Files Development Tool Selector | |
| Featured Product | CapSense Sensing Technology | |
| PCN Obsolescence/ EOL | Multiple Devices 15/Apr/2011 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PSoC® | |
| Part Status | Obsolete | |
| Main Purpose | Interface, GPIO Expander | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | CY8C24894, CY8C9520 | |
| Primary Attributes | 8-Bit 20-Port GPIO Expander | |
| Secondary Attributes | 8 Switches, 11 LEDs | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY3242-IOXLITE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY3242-IOXLITE is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY3242-IOXLITE is new and unused, you can buy CY3242-IOXLITE Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY3242-IOXLITE.
