| Manufacturer Part Number: | CY3215-DK |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | PSoC® PSOC® 1 MCU 8-Bit M8C Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY3215-DK Datasheet |
| Internal Part Number | 898-CY3215-DK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | CapSense Sensing Technology | |
| PCN Obsolescence/ EOL | Multiple Devices 13/Dec/2013 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | PSOC® 1 | |
| Part Status | Obsolete | |
| Board Type | Evaluation Platform | |
| Type | MCU 8-Bit | |
| Core Processor | M8C | |
| Operating System | - | |
| Platform | - | |
| For Use With/Related Products | PSoC® | |
| Mounting Type | Fixed | |

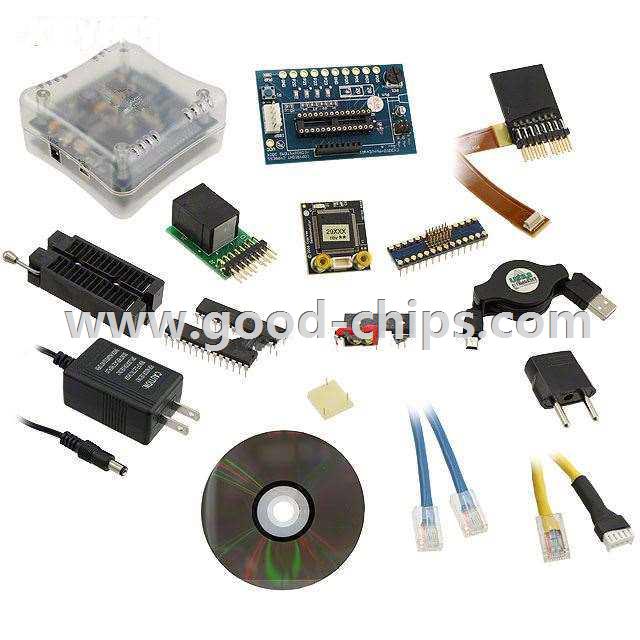

| Contents | Board(s), Cable(s), Power Supply, Accessories, ICE-Cube Programmer | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY3215-DK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY3215-DK is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY3215-DK is new and unused, you can buy CY3215-DK Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY3215-DK.
