Manufacturer Part Number: | CY3209-EXPRESSEVK |
---|---|
Manufacturer: | Cypress Semiconductor Corp |
Product Category: | Evaluation Boards - Embedded - MCU, DSP |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | PSoC® PSoC Express Evaluation Kit PSOC® CapSense MCU 8-Bit M8C Embedded Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CY3209-EXPRESSEVK Datasheet |
Internal Part Number | 898-CY3209-EXPRESSEVK | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | CY3209-EXPRESSEVK Schematic Development Tool Selector | |
Featured Product | CapSense Sensing Technology | |
PCN Obsolescence/ EOL | Multiple Devices 15/Jul/2011 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Embedded - MCU, DSP | |
Manufacturer | Cypress Semiconductor Corp | |
Series | PSOC® CapSense | |
Part Status | Obsolete | |
Board Type | Evaluation Platform | |
Type | MCU 8-Bit | |
Core Processor | M8C | |
Operating System | - | |
Platform | PSoC Express Evaluation Kit | |
For Use With/Related Products | PSoC® | |
Mounting Type | Fixed | |

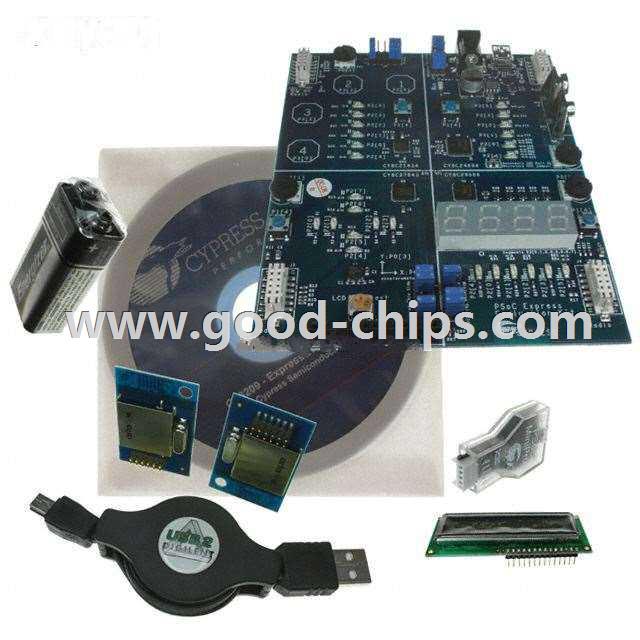

Contents | Board(s), Cable(s), LCD, Accessories, MiniProg Programmer | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CY3209-EXPRESSEVK | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CY3209-EXPRESSEVK is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY3209-EXPRESSEVK is new and unused, you can buy CY3209-EXPRESSEVK Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY3209-EXPRESSEVK.
