| Manufacturer Part Number: | CY2DP1504ZXC |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Clock/Timing - Clock Buffers, Drivers |
| Available Quantity: | 9074 Pieces |
| Unit Price: | Quote by Email |
| Description: | Clock Fanout Buffer (Distribution), Multiplexer IC 1.5GHz 20-TSSOP (0.173", 4.40mm Width) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY2DP1504ZXC Datasheet |
| Internal Part Number | 898-CY2DP1504ZXC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Qualification BEOL 13/Mar/2014 Test/Finish Site Addition 19/Dec/2014 Assembly Site Add 17/Sep/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Clock Buffers, Drivers | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Fanout Buffer (Distribution), Multiplexer | |
| Number of Circuits | 1 | |
| Ratio - Input:Output | 2:4 | |
| Differential - Input:Output | Yes/Yes | |
| Input | LVPECL | |
| Output | LVPECL | |
| Frequency - Max | 1.5GHz | |
| Voltage - Supply | 2.375 V ~ 3.465 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

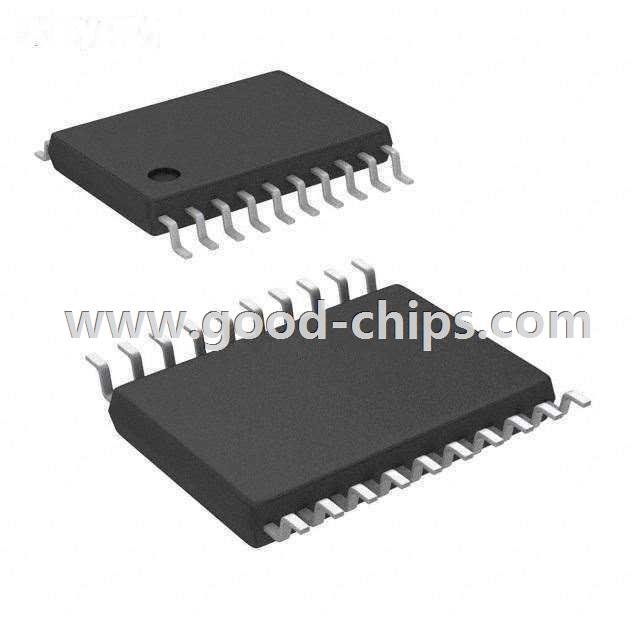

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 20-TSSOP | |
| Standard Package | 148 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY2DP1504ZXC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY2DP1504ZXC is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY2DP1504ZXC is new and unused, you can buy CY2DP1504ZXC Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY2DP1504ZXC.
