| Manufacturer Part Number: | CY15FRAMKIT-001 |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9030 Pieces |
| Unit Price: | Quote by Email |

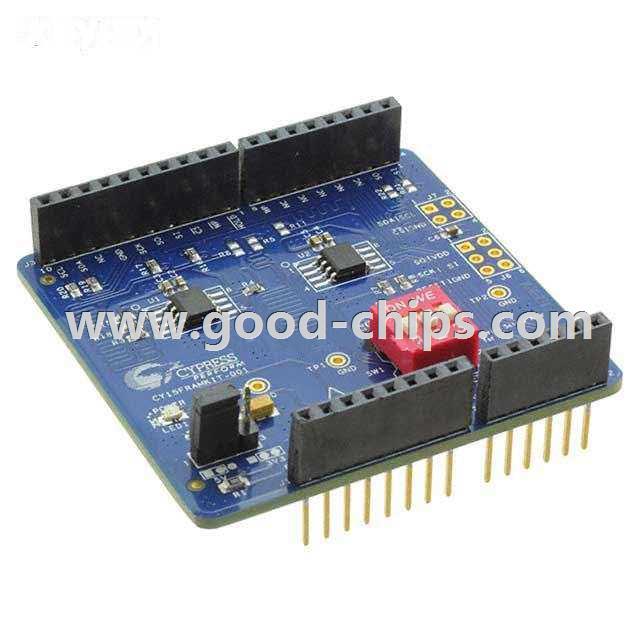

| Description: | FM24W256, FM25W256 - Memory, FRAM Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY15FRAMKIT-001 Datasheet |
| Internal Part Number | 898-CY15FRAMKIT-001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | F-RAM™ for Smart E-Meters SPI Guide for F-RAM™ Design Guide to I2C F-RAM™ Processor Companions Interfacing SPI F-RAM with PSoC® 4 Design Guide to SPI F-RAM™ Processor Companion - FM33256B F-RAM™ SPI Read/Write Internal Operation and Data Protection | |
| Product Training Modules | F-RAM for Smart E Meters F-RAM for Automotive Infotainment | |
| Design Resources | CY15FRAMKIT-001 Brd Design Files Development Tool Selector | |
| Featured Product | Serial F-RAM Development Kit PSoC Dev Kits | |
| Online Catalog | Serial F-RAM™ Development Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Memory, FRAM | |
| Embedded | - | |
| Utilized IC / Part | FM24W256, FM25W256 | |
| Primary Attributes | - | |
| Secondary Attributes | I²C and SPI Interfaces | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY15FRAMKIT-001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY15FRAMKIT-001 is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY15FRAMKIT-001 is new and unused, you can buy CY15FRAMKIT-001 Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY15FRAMKIT-001.
