Manufacturer Part Number: | CXS3102A14S5S |
---|---|
Manufacturer: | Switchcraft Inc. |
Product Category: | Circular Connectors |
Available Quantity: | 9020 Pieces |
Unit Price: | Quote by Email |

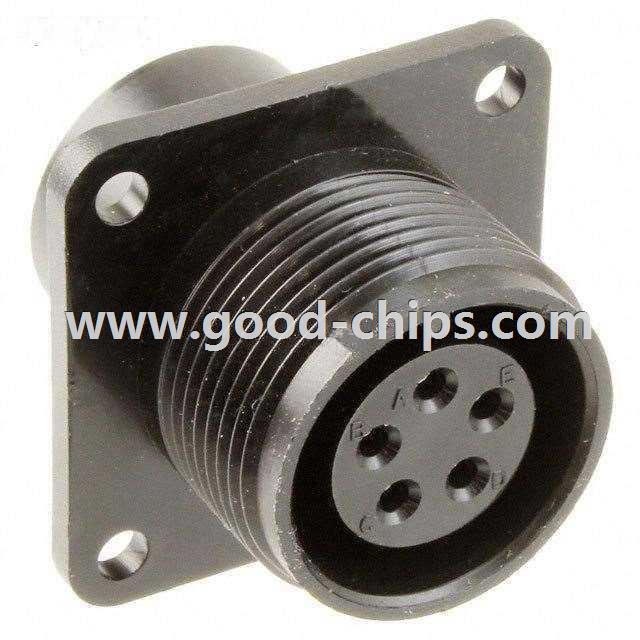

Description: | 5 Position Circular Connector Receptacle, Female Sockets Solder Silver |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CXS3102A14S5S Datasheet |
Internal Part Number | 898-CXS3102A14S5S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MIL-E-QUAL® | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | Conxall/Switchcraft | |
Series | MIL-E-QUAL® | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 5 | |
Shell Size - Insert | 14S-5 | |
Shell Size, MIL | - | |
Mounting Type | Panel Mount, Flange | |
Termination | Solder | |
Fastening Type | Threaded | |
Orientation | Keyed | |
Ingress Protection | Weathertight | |
Shell Material, Finish | Nylon | |
Contact Finish | Silver | |
Features | - | |
Contact Finish Thickness | - | |
Current Rating | - | |
Voltage - Rated | 500V | |
Operating Temperature | -40°C ~ 125°C | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CXS3102A14S5S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CXS3102A14S5S is in stock for immediate shipping now. We are the distributor of Switchcraft Inc. all series components. The condition of CXS3102A14S5S is new and unused, you can buy CXS3102A14S5S Switchcraft Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CXS3102A14S5S.
