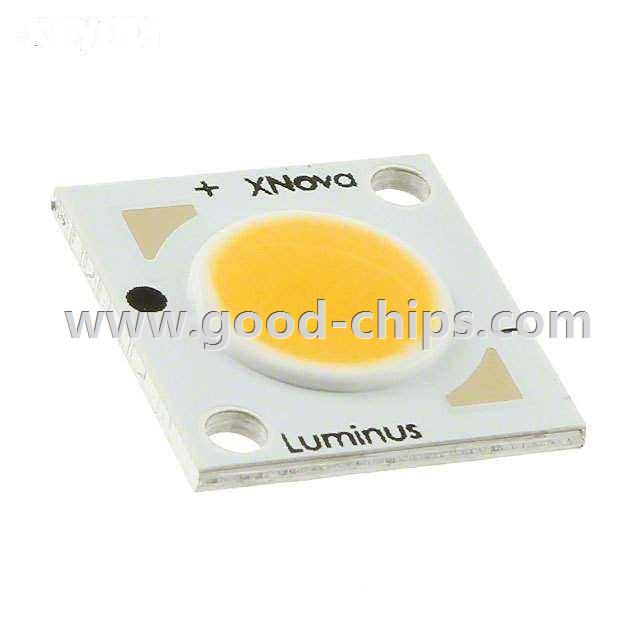

Manufacturer Part Number: | CXM-6-30-90-9-AA00-F2-3 |
---|---|
Manufacturer: | Luminus Devices Inc. |
Product Category: | LED Lighting - COBs, Engines, Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Lighting COBs, Engines, Modules Chip On Board (COB) CXM-6 White, Warm Rectangle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CXM-6-30-90-9-AA00-F2-3 Datasheet |
Internal Part Number | 898-CXM-6-30-90-9-AA00-F2-3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Category | Optoelectronics | |
Family | LED Lighting - COBs, Engines, Modules | |
Manufacturer | Luminus Devices Inc. | |
Series | CXM-6 | |
Packaging | Tray | |
Part Status | Active | |
Type | Chip On Board (COB) | |
Color | White, Warm | |
CCT (K) | 3000K 3-Step MacAdam Ellipse | |
Wavelength | - | |
Configuration | Rectangle | |
Flux @ Current/Temperature - Test | 385 lm (375 lm ~ 395 lm) | |
Current - Test | 480mA | |
Temperature - Test | 85°C | |
Voltage - Forward (Vf) (Typ) | 8.8V | |
Lumens/Watt @ Current - Test | 91 lm/W | |
Current - Max | 960mA | |
CRI (Color Rendering Index) | 90 | |
Viewing Angle | 120° | |
Features | - | |
Size / Dimension | 12.00mm L x 13.00mm W | |
Height | 1.37mm | |
Light Emitting Surface (LES) | 6.30mm Diameter | |
Lens Type | Flat | |
Standard Package | 400 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CXM-6-30-90-9-AA00-F2-3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CXM-6-30-90-9-AA00-F2-3 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of CXM-6-30-90-9-AA00-F2-3 is new and unused, you can buy CXM-6-30-90-9-AA00-F2-3 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CXM-6-30-90-9-AA00-F2-3.
