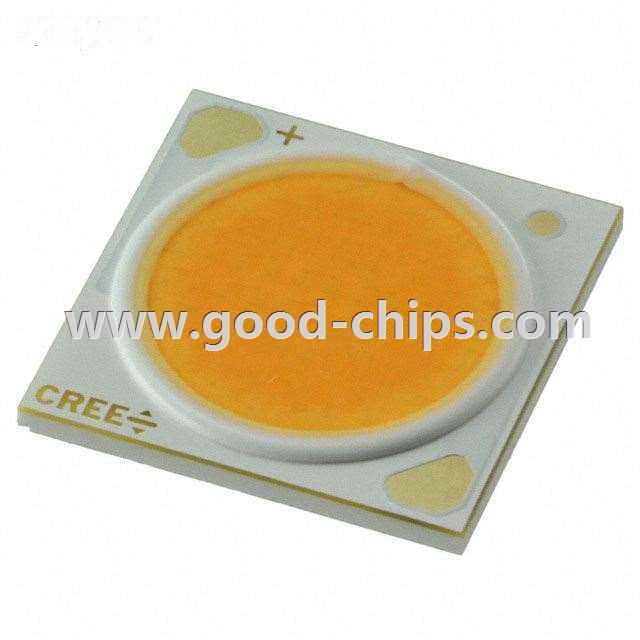

| Manufacturer Part Number: | CXA2520-0000-000N0UN427H |
|---|---|
| Manufacturer: | Cree Inc. |
| Product Category: | LED Lighting - COBs, Engines, Modules |
| Available Quantity: | 9110 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting COBs, Engines, Modules Chip On Board (COB) XLamp® CXA2520 White, Warm Square |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CXA2520-0000-000N0UN427H Datasheet |
| Internal Part Number | 898-CXA2520-0000-000N0UN427H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Featured Product | CXA LED Array – Cree | |
| PCN Design/Specification | Xlamp CXA15,25 White LEDs 18/Jul/2013 | |
| Online Catalog | XLamp® CXA2520 LEDs | |
| Category | Optoelectronics | |
| Family | LED Lighting - COBs, Engines, Modules | |
| Manufacturer | Cree Inc. | |
| Series | XLamp® CXA2520 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Chip On Board (COB) | |
| Color | White, Warm | |
| CCT (K) | 2700K 2-Step MacAdam Ellipse | |
| Wavelength | - | |
| Configuration | Square | |
| Flux @ Current/Temperature - Test | 1770 lm (1710 lm ~ 1830 lm) | |
| Current - Test | 550mA | |
| Temperature - Test | 85°C | |
| Voltage - Forward (Vf) (Typ) | 36V | |
| Lumens/Watt @ Current - Test | 89 lm/W | |
| Current - Max | 1.25A | |
| CRI (Color Rendering Index) | 90 | |
| Viewing Angle | 115° | |
| Features | - | |
| Size / Dimension | 23.85mm L x 23.85mm W | |
| Height | 1.70mm | |
| Light Emitting Surface (LES) | 19.00mm Diameter | |
| Lens Type | Flat | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CXA2520-0000-000N0UN427H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CXA2520-0000-000N0UN427H is in stock for immediate shipping now. We are the distributor of Cree Inc. all series components. The condition of CXA2520-0000-000N0UN427H is new and unused, you can buy CXA2520-0000-000N0UN427H Cree Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CXA2520-0000-000N0UN427H.
