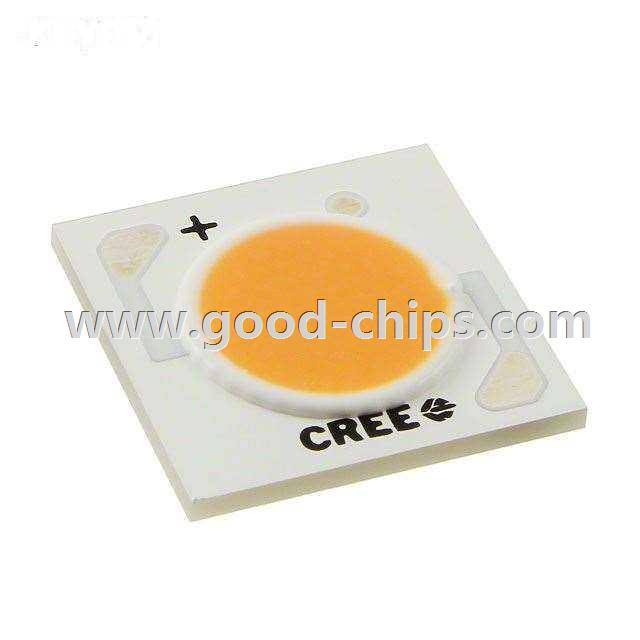

Manufacturer Part Number: | CXA1520-0000-000N0YK230F |
---|---|
Manufacturer: | Cree Inc. |
Product Category: | LED Lighting - COBs, Engines, Modules |
Available Quantity: | 9094 Pieces |
Unit Price: | Quote by Email |
Description: | LED Lighting COBs, Engines, Modules Chip On Board (COB) XLamp® CXA1520 White, Warm Square |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CXA1520-0000-000N0YK230F Datasheet |
Internal Part Number | 898-CXA1520-0000-000N0YK230F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Featured Product | CXA LED Array – Cree | |
Online Catalog | XLamp® CXA1520 LEDs | |
Category | Optoelectronics | |
Family | LED Lighting - COBs, Engines, Modules | |
Manufacturer | Cree Inc. | |
Series | XLamp® CXA1520 | |
Packaging | Tray | |
Part Status | Active | |
Type | Chip On Board (COB) | |
Color | White, Warm | |
CCT (K) | 3000K 4-Step MacAdam Ellipse | |
Wavelength | - | |
Configuration | Square | |
Flux @ Current/Temperature - Test | 1245 lm (1200 lm ~ 1290 lm) | |
Current - Test | 500mA | |
Temperature - Test | 85°C | |
Voltage - Forward (Vf) (Typ) | 35V | |
Lumens/Watt @ Current - Test | 72 lm/W | |
Current - Max | 900mA | |
CRI (Color Rendering Index) | 93 | |
Viewing Angle | 115° | |
Features | - | |
Size / Dimension | 15.85mm L x 15.85mm W | |
Height | 1.55mm | |
Light Emitting Surface (LES) | 8.90mm Diameter | |
Lens Type | Flat | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CXA1520-0000-000N0YK230F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CXA1520-0000-000N0YK230F is in stock for immediate shipping now. We are the distributor of Cree Inc. all series components. The condition of CXA1520-0000-000N0YK230F is new and unused, you can buy CXA1520-0000-000N0YK230F Cree Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CXA1520-0000-000N0YK230F.
