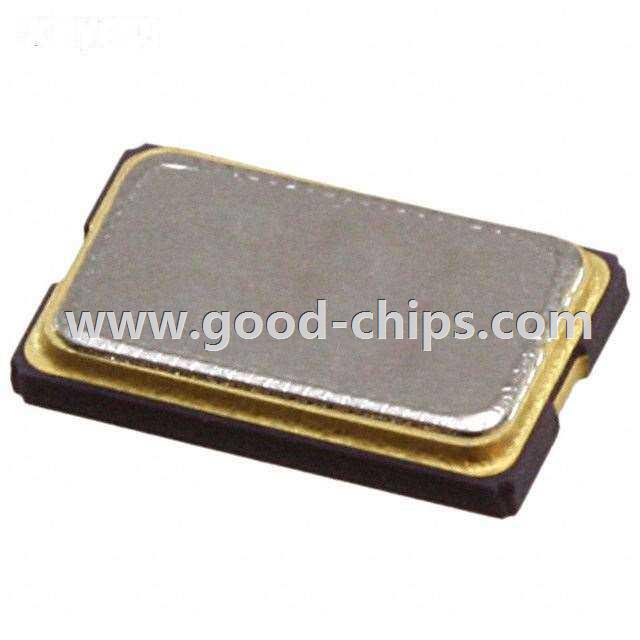

Manufacturer Part Number: | CX532Z-A2B3C5-70-25.0D18 |
---|---|
Manufacturer: | Cardinal Components Inc. |
Product Category: | Crystals |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 25MHz ±20ppm Crystal 18pF 70 Ohm -40°C ~ 85°C Surface Mount 2-SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CX532Z-A2B3C5-70-25.0D18 Datasheet |
Internal Part Number | 898-CX532Z-A2B3C5-70-25.0D18 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | Cardinal Components Inc. | |
Series | CX532 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | MHz Crystal | |
Frequency | 25MHz | |
Frequency Stability | ±30ppm | |
Frequency Tolerance | ±20ppm | |
Load Capacitance | 18pF | |
ESR (Equivalent Series Resistance) | 70 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD | |
Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | |
Height | 0.059" (1.50mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CX532Z-A2B3C5-70-25.0D18 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CX532Z-A2B3C5-70-25.0D18 is in stock for immediate shipping now. We are the distributor of Cardinal Components Inc. all series components. The condition of CX532Z-A2B3C5-70-25.0D18 is new and unused, you can buy CX532Z-A2B3C5-70-25.0D18 Cardinal Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CX532Z-A2B3C5-70-25.0D18.
