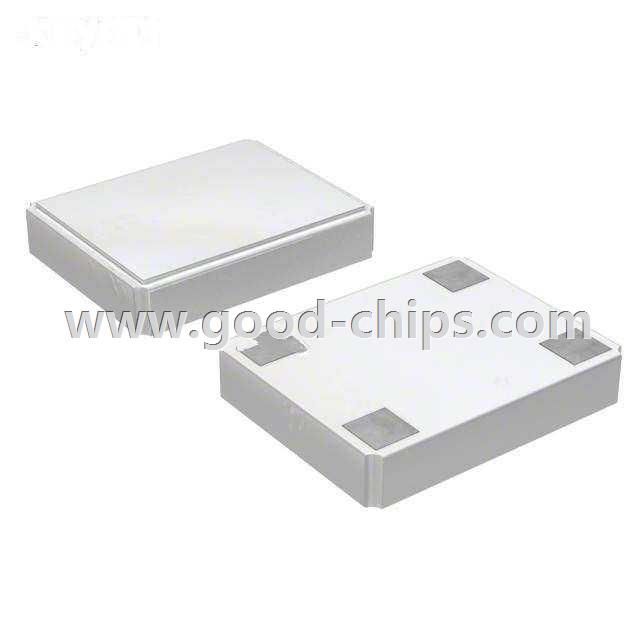

| Manufacturer Part Number: | CX2520SB13560D0GEJZ1 |
|---|---|
| Manufacturer: | AVX Corp/Kyocera Corp |
| Product Category: | Crystals |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 13.56MHz ±15ppm Crystal 8pF 150 Ohm -10°C ~ 70°C Surface Mount 4-SMD, No Lead (DFN, LCC) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CX2520SB13560D0GEJZ1 Datasheet |
| Internal Part Number | 898-CX2520SB13560D0GEJZ1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Crystals | |
| Manufacturer | AVX Corp/Kyocera Corp | |
| Series | CX2520SB, Kyocera | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Discontinued | |
| Type | MHz Crystal | |
| Frequency | 13.56MHz | |
| Frequency Stability | ±15ppm | |
| Frequency Tolerance | ±15ppm | |
| Load Capacitance | 8pF | |
| ESR (Equivalent Series Resistance) | 150 Ohm | |
| Operating Mode | Fundamental | |
| Operating Temperature | -10°C ~ 70°C | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height | 0.020" (0.50mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CX2520SB13560D0GEJZ1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CX2520SB13560D0GEJZ1 is in stock for immediate shipping now. We are the distributor of AVX Corp/Kyocera Corp all series components. The condition of CX2520SB13560D0GEJZ1 is new and unused, you can buy CX2520SB13560D0GEJZ1 AVX Corp/Kyocera Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CX2520SB13560D0GEJZ1.
