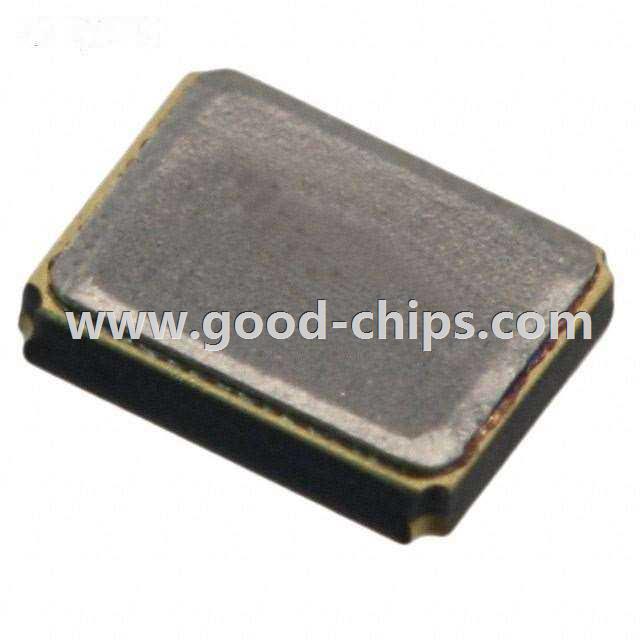

Manufacturer Part Number: | CX2520DB12000C0WLSC1 |
---|---|
Manufacturer: | AVX Corp/Kyocera Corp |
Product Category: | Crystals |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | 12MHz ±50ppm Crystal 7pF 100 Ohm -30°C ~ 85°C AEC-Q200 Surface Mount 4-SMD, No Lead (DFN, LCC) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CX2520DB12000C0WLSC1 Datasheet |
Internal Part Number | 898-CX2520DB12000C0WLSC1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | CX2520DB, Kyocera Series | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | AVX Corp/Kyocera Corp | |
Series | CX2520DB, Kyocera | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MHz Crystal | |
Frequency | 12MHz | |
Frequency Stability | ±50ppm | |
Frequency Tolerance | ±50ppm | |
Load Capacitance | 7pF | |
ESR (Equivalent Series Resistance) | 100 Ohm | |
Operating Mode | Fundamental | |
Operating Temperature | -30°C ~ 85°C | |
Ratings | AEC-Q200 | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height | 0.022" (0.55mm) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CX2520DB12000C0WLSC1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CX2520DB12000C0WLSC1 is in stock for immediate shipping now. We are the distributor of AVX Corp/Kyocera Corp all series components. The condition of CX2520DB12000C0WLSC1 is new and unused, you can buy CX2520DB12000C0WLSC1 AVX Corp/Kyocera Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CX2520DB12000C0WLSC1.
