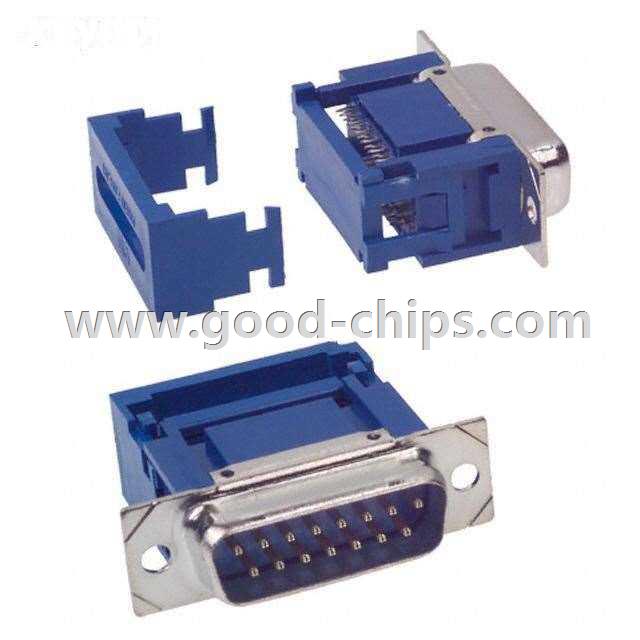

Manufacturer Part Number: | CWR-280-15-0003 |
---|---|
Manufacturer: | CW Industries |
Product Category: | D-Sub Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 15 Position D-Sub Receptacle, Male Pins Connector, Free Hanging (In-Line) IDC, Ribbon Cable |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CWR-280-15-0003 Datasheet |
Internal Part Number | 898-CWR-280-15-0003 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | CW Industries | |
Series | CWR | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Male Pins | |
Number of Positions | 15 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 2 (DA, A) | |
Contact Type | Signal | |
Mounting Type | Free Hanging (In-Line) | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | IDC, Ribbon Cable | |
Features | Feed Through, Strain Relief | |
Shell Material, Finish | - | |
Contact Finish | Tin | |
Contact Finish Thickness | 100µin (2.54µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | - | |
Current Rating | 1A | |
Housing Material | Thermoplastic | |
Color | Blue | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CWR-280-15-0003 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CWR-280-15-0003 is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of CWR-280-15-0003 is new and unused, you can buy CWR-280-15-0003 CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CWR-280-15-0003.
