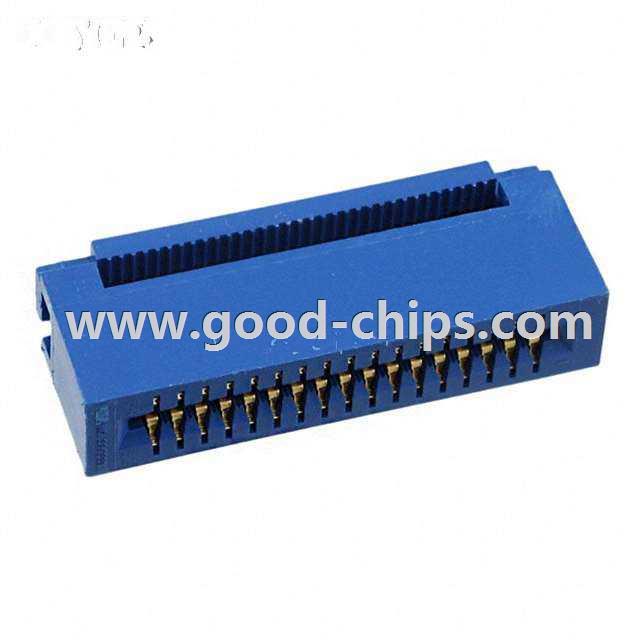

Manufacturer Part Number: | CWR-170-34-0000 |
---|---|
Manufacturer: | CW Industries |
Product Category: | Card Edge Connectors - Edgeboard Connectors |
Available Quantity: | 9220 Pieces |
Unit Price: | Quote by Email |
Description: | CONN CARDEDGE 34PIN GOLD W/O EAR |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CWR-170-34-0000 Datasheet |
Internal Part Number | 898-CWR-170-34-0000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Insulation Displacement Connectors | |
Online Catalog | 170 Series | |
Category | Connectors, Interconnects | |
Family | Card Edge Connectors - Edgeboard Connectors | |
Manufacturer | CW Industries | |
Series | 170 | |
Packaging | Bulk | |
Part Status | Active | |
Card Type | Non Specified - Dual Edge | |
Gender | Female | |
Number of Positions/Bay/Row | 17 | |
Number of Positions | 34 | |
Card Thickness | 0.032" ~ 0.070" (0.81mm ~ 1.78mm) | |
Number of Rows | 2 | |
Pitch | 0.100" (2.54mm) | |
Features | - | |
Mounting Type | Free Hanging (In-Line) | |
Termination | IDC | |
Contact Material | Phosphor Bronze | |
Contact Finish | Gold | |
Contact Finish Thickness | 10µin (0.25µm) | |
Contact Type | Cantilever | |
Color | Blue | |
Flange Feature | - | |
Operating Temperature | -55°C ~ 125°C | |
Material - Insulation | Thermoplastic | |
Read Out | Dual | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CWR-170-34-0000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CWR-170-34-0000 is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of CWR-170-34-0000 is new and unused, you can buy CWR-170-34-0000 CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CWR-170-34-0000.
