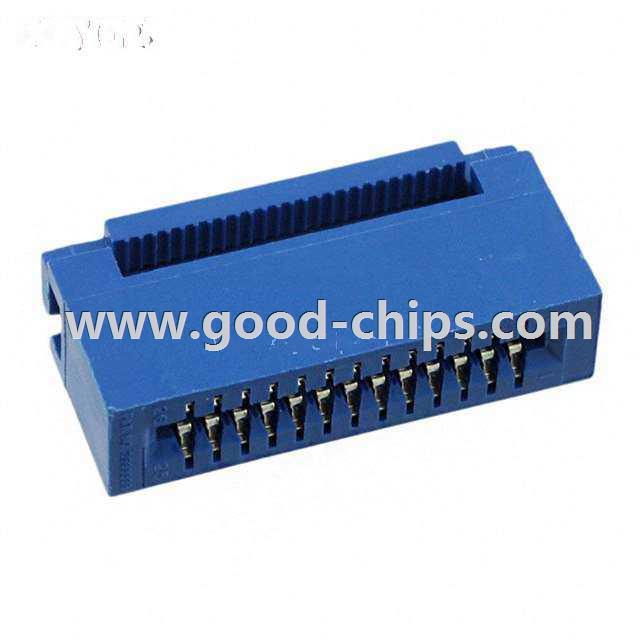

| Manufacturer Part Number: | CWR-170-26-0203 |
|---|---|
| Manufacturer: | CW Industries |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9840 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN CARDEDGE 26PIN TIN W/ORS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CWR-170-26-0203 Datasheet |
| Internal Part Number | 898-CWR-170-26-0203 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Insulation Displacement Connectors | |
| Online Catalog | 170 Series | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | CW Industries | |
| Series | 170 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | 13 | |
| Number of Positions | 26 | |
| Card Thickness | 0.032" ~ 0.070" (0.81mm ~ 1.78mm) | |
| Number of Rows | 2 | |
| Pitch | 0.100" (2.54mm) | |
| Features | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | IDC | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Contact Type | Cantilever | |
| Color | Blue | |
| Flange Feature | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Material - Insulation | Thermoplastic | |
| Read Out | Dual | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CWR-170-26-0203 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CWR-170-26-0203 is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of CWR-170-26-0203 is new and unused, you can buy CWR-170-26-0203 CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CWR-170-26-0203.
