| Manufacturer Part Number: | CWR-142-20-0003 |
|---|---|
| Manufacturer: | CW Industries |
| Product Category: | Rectangular Connectors - Board In, Direct Wire to Board |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

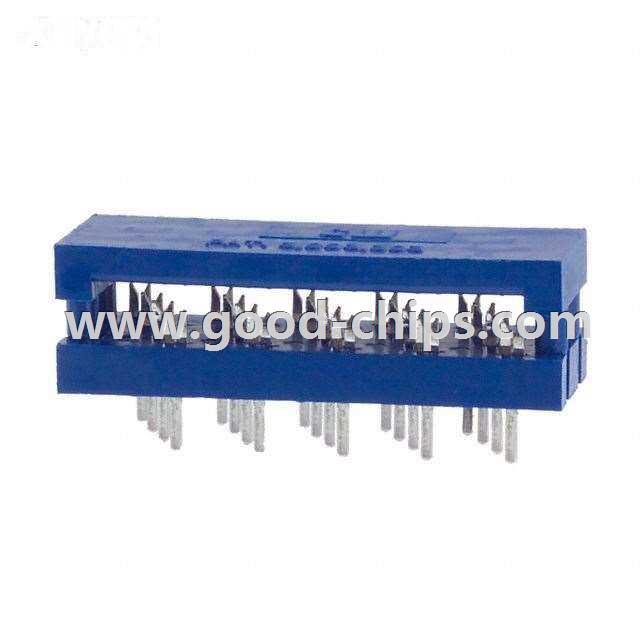

| Description: | 20 Position Ribbon Cable Connector Blue IDC 28-30 AWG, Stranded or Solid Through Hole |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CWR-142-20-0003 Datasheet |
| Internal Part Number | 898-CWR-142-20-0003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Board In, Direct Wire to Board | |
| Manufacturer | CW Industries | |
| Series | CWR | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Ribbon Cable | |
| Number of Positions | 20 | |
| Cable Pitch | 0.050" (1.27mm) | |
| Board-Side Pitch | 0.200" (5.08mm) | |
| Number of Rows | 4 | |
| Row Spacing | 0.100" (2.54mm) | |
| Mounting Type | Through Hole | |
| Cable Termination | IDC | |
| Wire Gauge | 28-30 AWG, Stranded or Solid | |
| Features | Feed Through | |
| Contact Finish | Tin-Lead | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Color | Blue | |
| Number of Positions Loaded | All | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CWR-142-20-0003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CWR-142-20-0003 is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of CWR-142-20-0003 is new and unused, you can buy CWR-142-20-0003 CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CWR-142-20-0003.
