Manufacturer Part Number: | CWR-130-16-0000 |
---|---|
Manufacturer: | CW Industries |
Product Category: | Rectangular Connectors - Board In, Direct Wire to Board |
Available Quantity: | 12326 Pieces |
Unit Price: | Quote by Email |

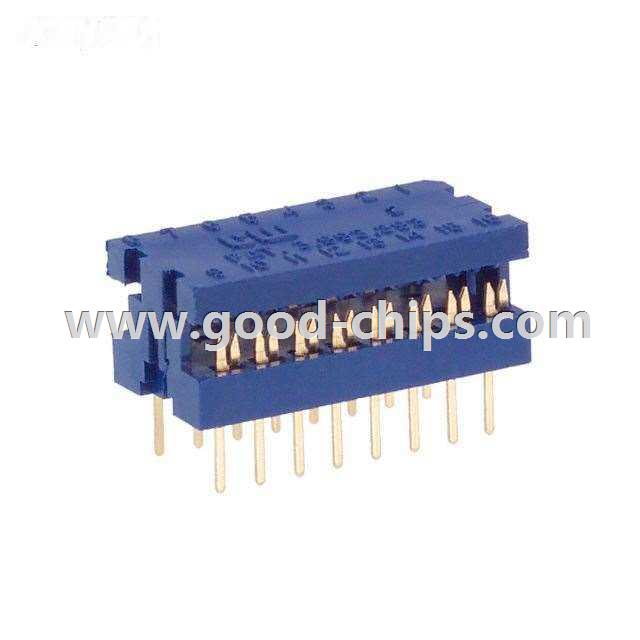

Description: | 16 Position Ribbon Cable, DIP Header Connector Blue IDC 28-30 AWG, Stranded or Solid Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CWR-130-16-0000 Datasheet |
Internal Part Number | 898-CWR-130-16-0000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Insulation Displacement Connectors | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CWR | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Board In, Direct Wire to Board | |
Manufacturer | CW Industries | |
Series | CWR | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Ribbon Cable, DIP Header | |
Number of Positions | 16 | |
Cable Pitch | 0.050" (1.27mm) | |
Board-Side Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.300" (7.62mm) | |
Mounting Type | Through Hole | |
Cable Termination | IDC | |
Wire Gauge | 28-30 AWG, Stranded or Solid | |
Features | Feed Through | |
Contact Finish | Gold | |
Contact Finish Thickness | 10µin (0.25µm) | |
Color | Blue | |
Number of Positions Loaded | All | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CWR-130-16-0000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CWR-130-16-0000 is in stock for immediate shipping now. We are the distributor of CW Industries all series components. The condition of CWR-130-16-0000 is new and unused, you can buy CWR-130-16-0000 CW Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CWR-130-16-0000.
