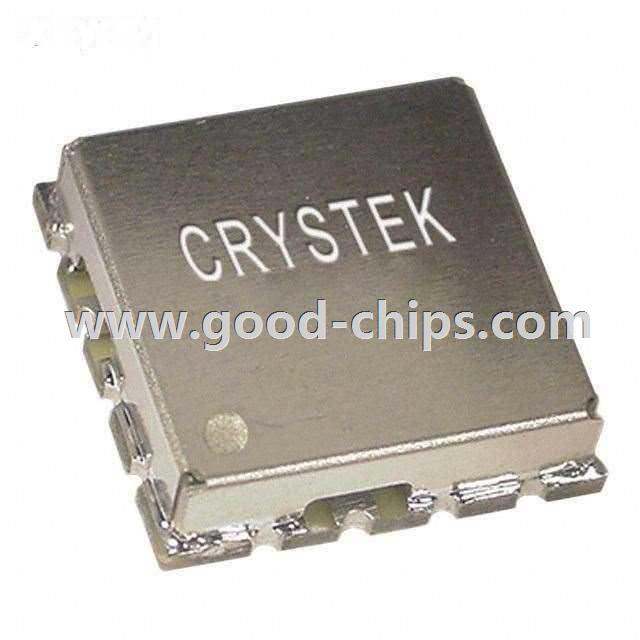

Manufacturer Part Number: | CVCO55CL-0805-0900 |
---|---|
Manufacturer: | Crystek Corporation |
Product Category: | VCOs (Voltage Controlled Oscillators) |
Available Quantity: | 9023 Pieces |
Unit Price: | Quote by Email |
Description: | Center Frequency 852.5MHz Voltage Controlled Oscillator 0.5 ~ 5 V 2 ±3 dBm -15 dBc |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CVCO55CL-0805-0900 Datasheet |
Internal Part Number | 898-CVCO55CL-0805-0900 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Voltage Controlled Oscillators (VCO) Selection Techniques Overview | |
RoHS Information | CVCO55 Certificate of Compliance | |
Featured Product | Voltage Controlled Oscillators | |
Online Catalog | CVCO55(CL) Series | |
Category | Crystals and Oscillators | |
Family | VCOs (Voltage Controlled Oscillators) | |
Manufacturer | Crystek Corporation | |
Series | CVCO55 | |
Packaging | Cut Strip | |
Part Status | Active | |
Frequency Range | 805 ~ 900MHz | |
Frequency - Center | 852.5MHz | |
Tuning Voltage (VDC) | 0.5 ~ 5 V | |
2nd Harmonic, Typ (dBc) | -15 | |
Icc Max | 20mA | |
Kvco (MHz/V) | 1 | |
Power (dBm) | 2 ±3 | |
Phase Noise Typ (dBc/Hz) | -105 | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | 16-QFN, Variant | |
Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | |
Height | 0.150" (3.81mm) | |
Voltage - Supply | 5V | |
Standard Package | 5 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CVCO55CL-0805-0900 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CVCO55CL-0805-0900 is in stock for immediate shipping now. We are the distributor of Crystek Corporation all series components. The condition of CVCO55CL-0805-0900 is new and unused, you can buy CVCO55CL-0805-0900 Crystek Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CVCO55CL-0805-0900.
