Manufacturer Part Number: | CV201210-270K |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

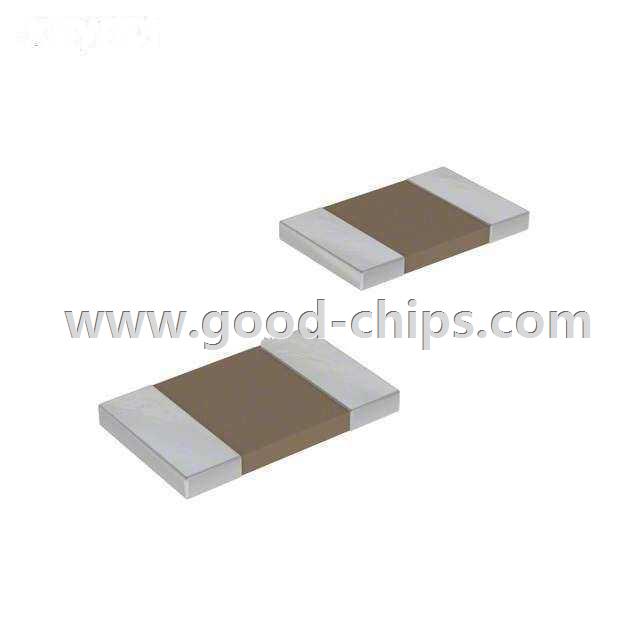

Description: | 27µH Shielded Multilayer Inductor 5mA 1.15 Ohm Max 0805 (2012 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CV201210-270K Datasheet |
Internal Part Number | 898-CV201210-270K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | CV201210-270K.stp | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | CV201210 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Multilayer | |
Material - Core | Ferrite | |
Inductance | 27µH | |
Tolerance | ±10% | |
Current Rating | 5mA | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 1.15 Ohm Max | |
Q @ Freq | 30 @ 1MHz | |
Frequency - Self Resonant | 14MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0805 (2012 Metric) | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Height - Seated (Max) | 0.057" (1.45mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CV201210-270K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CV201210-270K is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CV201210-270K is new and unused, you can buy CV201210-270K Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CV201210-270K.
