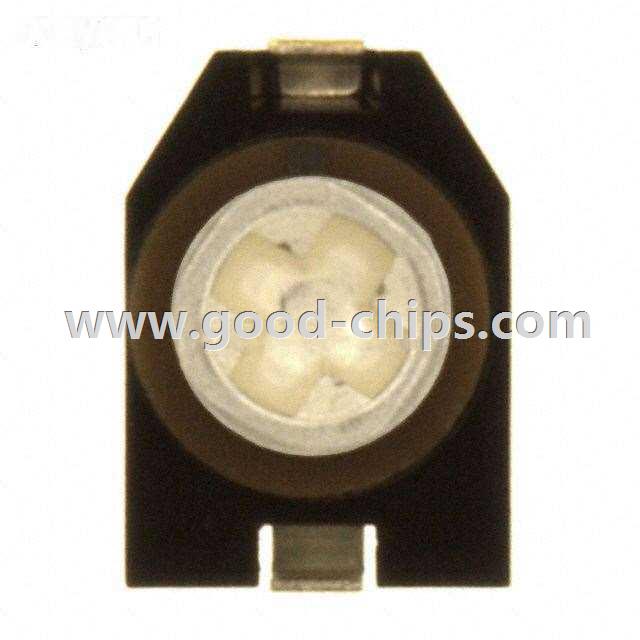

Manufacturer Part Number: | CTZ3E-50C-W1-PF |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Trimmers, Variable Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 4.5 ~ 50pF Trimmer Capacitor 25V Top Adjustment Surface Mount Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CTZ3E-50C-W1-PF Datasheet |
Internal Part Number | 898-CTZ3E-50C-W1-PF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Capacitors | |
Family | Trimmers, Variable Capacitors | |
Manufacturer | AVX Corporation | |
Series | CTZ, Kyocera | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Capacitance Range | 4.5 ~ 50pF | |
Adjustment Type | Top Adjustment | |
Voltage - Rated | 25V | |
Size / Dimension | Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
Height - Seated (Max) | 0.071" (1.80mm) | |
Mounting Type | Surface Mount | |
Features | Low Profile | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CTZ3E-50C-W1-PF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CTZ3E-50C-W1-PF is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of CTZ3E-50C-W1-PF is new and unused, you can buy CTZ3E-50C-W1-PF AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CTZ3E-50C-W1-PF.
