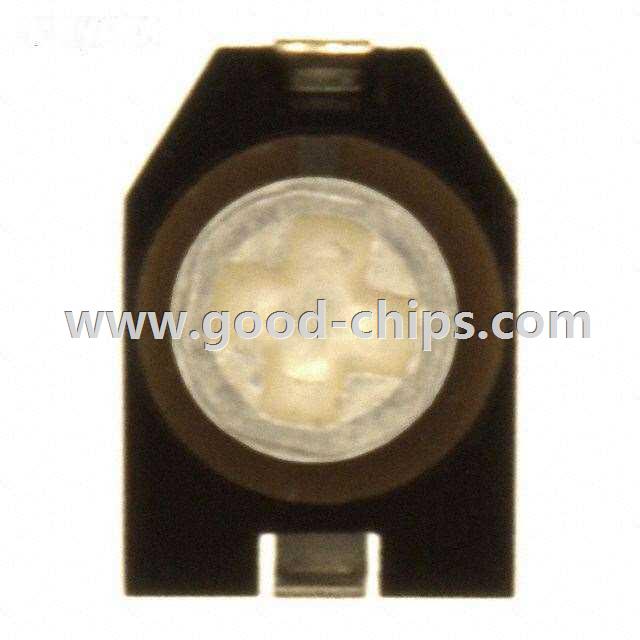

| Manufacturer Part Number: | CTZ3E-20C-W1-PF |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Trimmers, Variable Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4.5 ~ 20pF Trimmer Capacitor 25V Top Adjustment Surface Mount Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CTZ3E-20C-W1-PF Datasheet |
| Internal Part Number | 898-CTZ3E-20C-W1-PF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Capacitors | |
| Family | Trimmers, Variable Capacitors | |
| Manufacturer | AVX Corporation | |
| Series | CTZ, Kyocera | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Capacitance Range | 4.5 ~ 20pF | |
| Adjustment Type | Top Adjustment | |
| Voltage - Rated | 25V | |
| Size / Dimension | Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height - Seated (Max) | 0.071" (1.80mm) | |
| Mounting Type | Surface Mount | |
| Features | Low Profile | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CTZ3E-20C-W1-PF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CTZ3E-20C-W1-PF is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of CTZ3E-20C-W1-PF is new and unused, you can buy CTZ3E-20C-W1-PF AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CTZ3E-20C-W1-PF.
