| Manufacturer Part Number: | CTX50-5-52-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9443 Pieces |
| Unit Price: | Quote by Email |

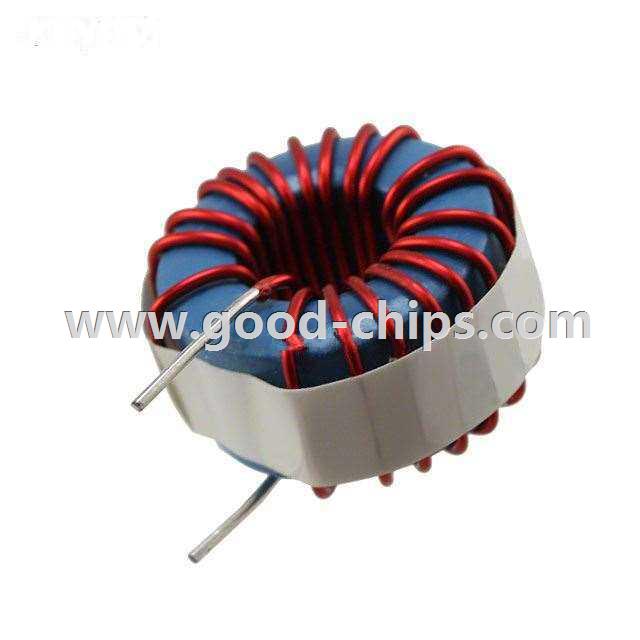

| Description: | 50µH Unshielded Toroidal Inductor 7.6A 24.8 mOhm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CTX50-5-52-R Datasheet |
| Internal Part Number | 898-CTX50-5-52-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CTX Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Eaton | |
| Series | CTX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Toroidal | |
| Material - Core | Powdered Iron | |
| Inductance | 50µH | |
| Tolerance | ±20% | |
| Current Rating | 7.6A | |
| Current - Saturation | 9.4A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 24.8 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 75°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.272" Dia x 0.744" W (32.30mm x 18.90mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 45 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CTX50-5-52-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CTX50-5-52-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of CTX50-5-52-R is new and unused, you can buy CTX50-5-52-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CTX50-5-52-R.
