| Manufacturer Part Number: | CTX50-1-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

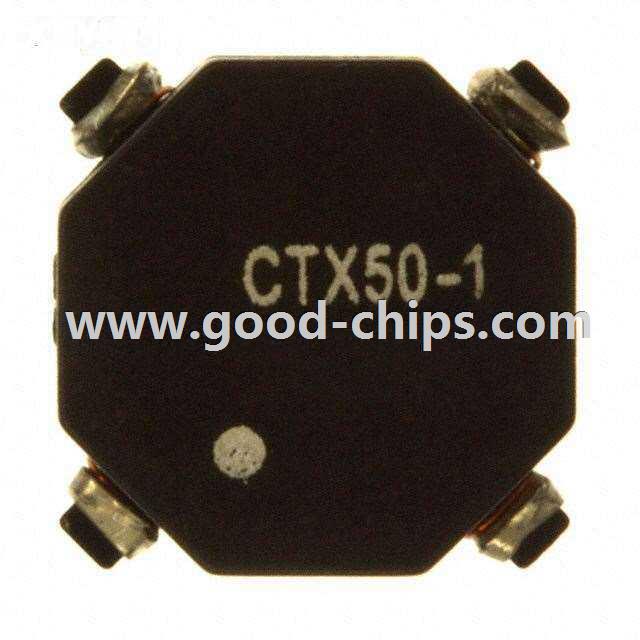

| Description: | Unshielded 2 Coil Inductor Array 202.5µH Inductance - Connected in Series 50.63µH Inductance - Connected in Parallel 365 mOhm Max DC Resistance (DCR) - Parallel 640mA Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CTX50-1-R Datasheet |
| Internal Part Number | 898-CTX50-1-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Multiple Devices 31/Aug/2013 Coiltronics Magnetics Facility 31/Aug/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Eaton | |
| Series | OCTA-PAC® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 202.5µH | |
| Inductance - Connected In Parallel | 50.63µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 640mA | |
| Current Rating - Series | 320mA | |
| Current Saturation - Parallel | - | |
| Current Saturation - Series | - | |
| DC Resistance (DCR) - Parallel | 365 mOhm Max | |
| DC Resistance (DCR) - Series | 1.461 Ohm Max | |
| Shielding | Unshielded | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | |
| Height | 0.165" (4.19mm) | |
| Standard Package | 1,100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CTX50-1-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CTX50-1-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of CTX50-1-R is new and unused, you can buy CTX50-1-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CTX50-1-R.
